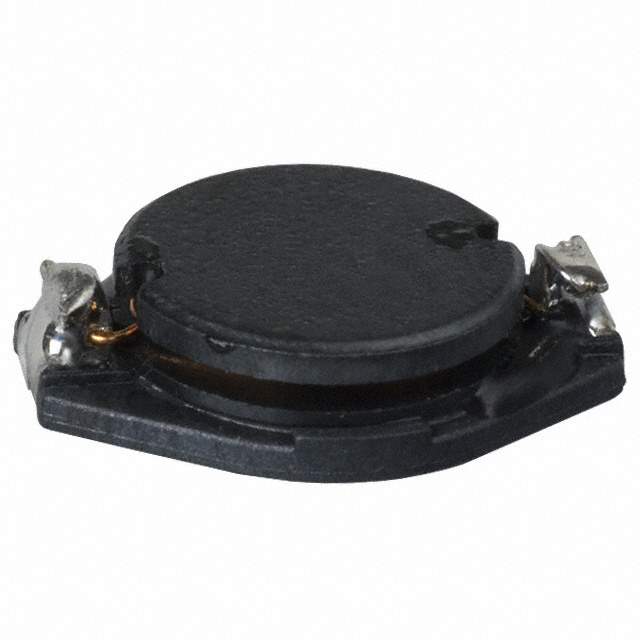

Same model may have multiple batches, images only for reference.

PM3308-680M-RC

Name: PM3308-680M-RC
Brand: Bourns Inc.
SKU: 1336893
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PM3308-680M-RC
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 68UH 700MA 700MOHM SMD / 68 µH Unshielded Drum Core, Wirewound Inductor 700 mA 700mOhm Max Nonstandard
Datasheet	PM3308-680M-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Bourns Inc.
Series	PM3308
Package	Tape & Reel
Product Status	Obsolete
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	68 µH
Tolerance	±20%
Current Rating (Amps)	700 mA
Current - Saturation (Isat)	900mA
Shielding	Unshielded
DC Resistance (DCR)	700mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.512" L x 0.374" W (13.00mm x 9.50mm)
Height - Seated (Max)	0.118" (3.00mm)
Base Product Number	PM3308
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
California Prop 65	Warning Information
Win Source Part Number	1336893-PM3308-680M-RC
Ultra Librarian 3D Model	Ultra Librarian PM3308-680M-RC CAD Model

Alternative Products

Description

The PM3308-680M-RC is a fixed inductor from the PM3308 series with an inductance of 68 µH and a tolerance of ±20%. Bourns Inc.

Series: PM3308
Inductance: 68 µH
Tolerance: ±20%
Core Type: Drum Core
Winding: Wirewound
Package: Tape & Reel
Shielding: Unshielded
Size/Dimension: 0.512" L x 0.374" W (13.00mm x 9.50mm)
Height Seated (Max): 0.118" (3.00mm)
DC Resistance (DCR): 700mOhm Max
Material Core: Ferrite
Current Rating (Amps): 700 mA
Inductance Frequency - Test: 100 kHz
Package: Nonstandard
Supplier Device Package: Not Specified
Standard Package: 1,000
Operating Temperature Range: -55°C ~ 125°C
Base Product Number: PM3308
