Same model may have multiple batches, images only for reference.

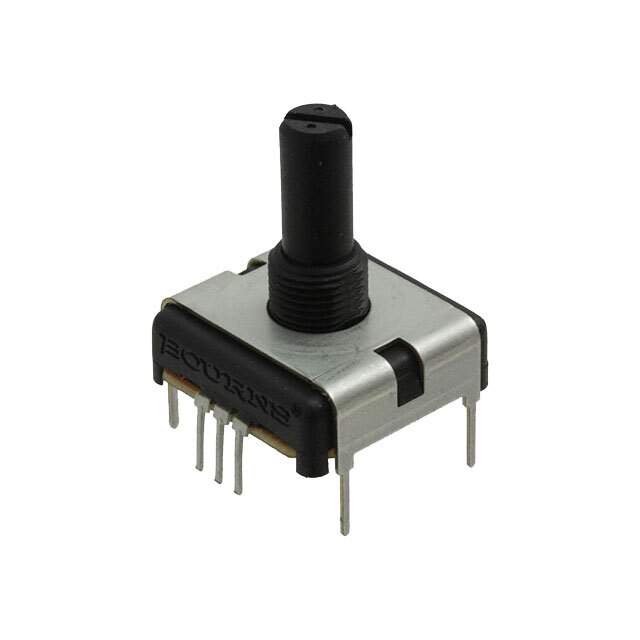

PCW1D-B24-BAB103L Real Image
Same model may have multiple batches, images only for reference.

PCW1D-B24-BAB103L

Part No PCW1D-B24-BAB103L
Manufacturer Bourns Inc.
Catalog Rotary Potentiometers, Rheostats
Description POT 10K OHM 3/4W PLASTIC LINEAR / 10k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Conductive Plastic 0.75W, 3/4W PC Pins
Datasheet
PCW1D-B24-BAB103L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Rotary Potentiometers, Rheostats
Mfr Bourns Inc.
Series PC-Slimline
Package Tray
Resistance (Ohms) 10k
Tolerance ±20%
Power (Watts) 0.75W, 3/4W
Built in Switch None
Number of Turns 1
Taper Linear
Number of Gangs 1
Adjustment Type Top Adjustment
Temperature Coefficient ±1000ppm/°C
Rotation 300°
Resistive Material Conductive Plastic
Termination Style PC Pins
Actuator Type Slotted
Actuator Length 0.750" (19.05mm)
Actuator Diameter 0.250" (6.35mm)
Bushing Thread M9 x 0.75
Mounting Type Panel Mount
Size - Body Rectangular - 0.920" x 0.874" Face (23.37mm x 22.20mm)
Base Product Number PCW1D
Standard Package 45
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 1341512-PCW1D-B24-BAB103L
Ultra Librarian 3D Model Ultra Librarian PCW1D-B24-BAB103L CAD Model

Description

The Bourns Inc. PCW1D-B24-BAB103L is a linear taper single gang rotary potentiometer with a resistance of 10k ohms, a power rating of 0.75W, and a tolerance of ±20%.

  • Actuator: Slotted
  • Bushing Thread: M9 x 0.75
  • Rotation Angle: 300°
  • Body Size: 0.920” x 0.874” face (23.37mm x 22.20mm)
  • Mounting: Panel Mounted
  • Resistive Material: Conductive Plastic
  • Adjustment Type: Top
  • Series: PC-Slimline
  • Packaging: Tray package of 45 units
  • Application: Audio equipment, lighting controls, and industrial control systems
  • ECCN: EAR99
  • REACH: Unaffected
