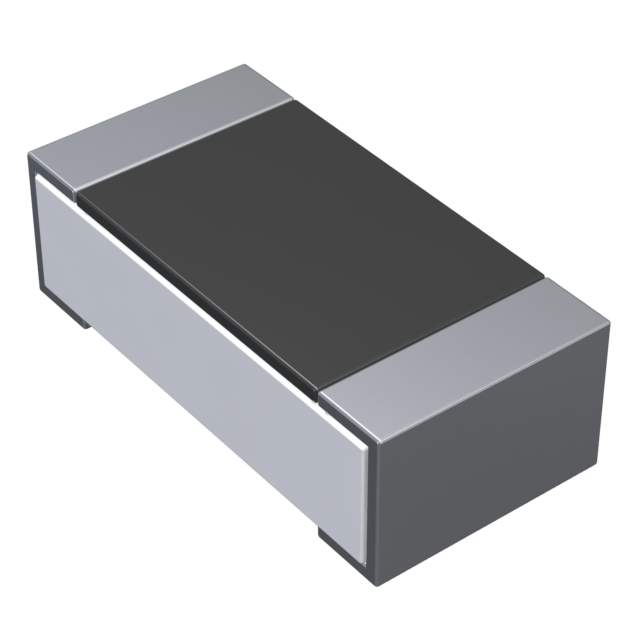

CR0603-JW-153ELF Real Image
Same model may have multiple batches, images only for reference.

CR0603-JW-153ELF

Part No CR0603-JW-153ELF
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 15K OHM 5% 1/10W 0603 / 15 kOhms ±5% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Moisture Resistant Thick Film
Datasheet
CR0603-JW-153ELF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Bourns Inc.
Packaging Reel - TR
Resistance 15 kOhms
Tolerance ±5%
Power (Watts) 0.1W, 1/10W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Base Product Number CR0603
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 118-CR0603-JW-153ELFCT,118-CR0603-JW-153ELFDKR,CR0603-JW-153ELF-ND,-CR0603-JW-153ELFCT,CR0603-JW-153ELFTR-ND,CR0603-JW-153ELFCT-ND,CR0603-JW-153ELFCT,-CR0603-JW-153ELFTR,118-CR0603-JW-153ELFTR,CR0603-JW-153ELFTR
Standard Package 5,000
Win Source Part Number 1326147-CR0603-JW-153ELF
Ultra Librarian 3D Model Ultra Librarian CR0603-JW-153ELF CAD Model

Description

The CR0603-JW-153ELF chip resistor from Bourns Inc. is a thick film resistor with a resistance of 15 kOhms and a power rating of 0.1W, 1/10W.

  • Resistance: 15 kOhms
  • Power Rating: 0.1W, 1/10W
  • Packaging: Reel
  • Design: Moisture-resistant
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Size: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Height: 0.022" (0.55mm)
  • Mounting: Surface mount
  • Terminations: 2
