Same model may have multiple batches, images only for reference.

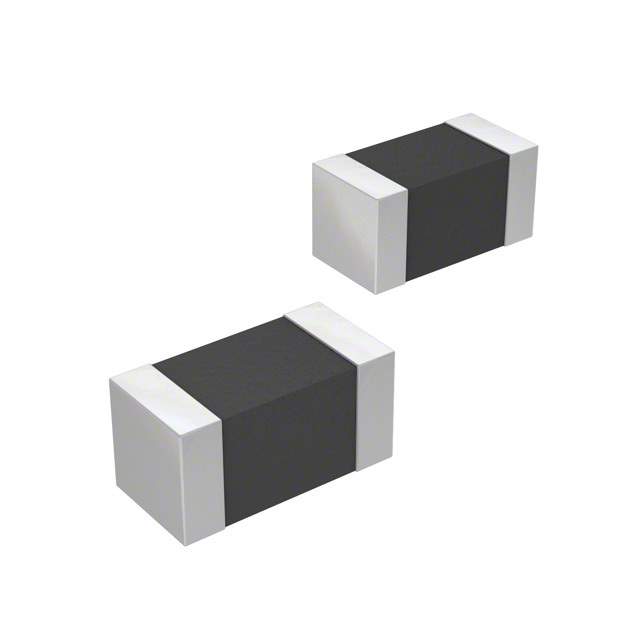

CM160808-27NJL Real Image
Same model may have multiple batches, images only for reference.

CM160808-27NJL

Part No CM160808-27NJL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 27NH 300MA 550MOHM SMD / 27 nH Unshielded Drum Core, Wirewound Inductor 300 mA 550mOhm Max 0603 (1608 Metric)
Datasheet
CM160808-27NJL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Alumina
Inductance 27 nH
Tolerance ±5%
Current Rating (Amps) 300 mA
Shielding Unshielded
DC Resistance (DCR) 550mOhm Max
Q @ Freq 10 @ 100MHz
Frequency - Self Resonant 2GHz
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100 MHz
Mounting Surface Mount
Case / Package 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.037" (0.94mm)
Base Product Number CM160808
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 3,000
Win Source Part Number 1327827-CM160808-27NJL
Ultra Librarian 3D Model Ultra Librarian CM160808-27NJL CAD Model

Description

Bourns Inc. brings you CM160808-27NJL, a fixed inductor that belongs to the drum core, wirewound category.

  • Packaging: Reel-TR
  • Size: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Height: 0.037" (0.94mm) Max
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Inductance: 27 nH
  • DC Resistance (DCR): 550mOhm Max
  • Supplier Device Package: 0603 (1608 Metric)
  • Operating Temperature: -40°C to 100°C
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
