Same model may have multiple batches, images only for reference.

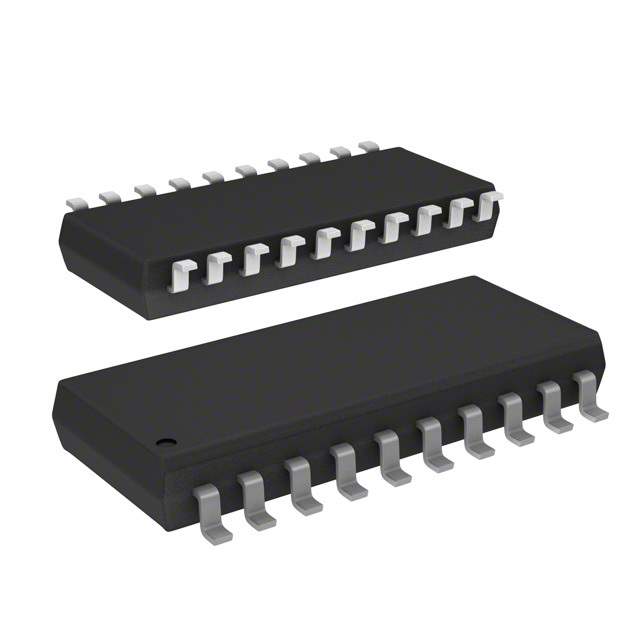

4820P-2-103 Real Image
Same model may have multiple batches, images only for reference.

4820P-2-103

Part No 4820P-2-103
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 19 RES 10K OHM 20SOIC / 10k Ohm ±2% 80mW Power Per Element Bussed 19 Resistor Network/Array ±100ppm/°C 20-SOIC (0.220", 5.59mm Width)
Datasheet
4820P-2-103 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Manufacturer Bourns Inc.
Packaging Reel - TR
Circuit Type Bussed
Resistance (Ohms) 10k
Tolerance ±2%
Number of Resistors 19
Number of Pins 20
Power Per Element 80mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications Automotive AEC-Q200
Mounting Surface Mount
Case / Package 20-SOIC (0.220", 5.59mm Width)
Supplier Device Package 20-SOM
Size / Dimension 0.540" L x 0.220" W (13.72mm x 5.59mm)
Height - Seated (Max) 0.094" (2.40mm)
Base Product Number 4820P
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0010
Other Part Number Q6979215DA
Standard Package 2,000
Win Source Part Number 1328296-4820P-2-103
Ultra Librarian 3D Model Ultra Librarian 4820P-2-103 CAD Model

Description

The Bourns Inc. 1328296-4820P-2-103 is a resistor network array that falls under the category of electronic components.

  • AEC-Q200 Compliant: True
  • Tolerance: ±2%
  • Resistance: 10k Ohms
  • Number of Resistors: 19
  • Power Per Element: 80mW
  • Mounting Type: Surface Mounted
  • RoHS Compliant: False
  • REACH: Affected
