4610X-101-223

Part No 4610X-101-223
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays

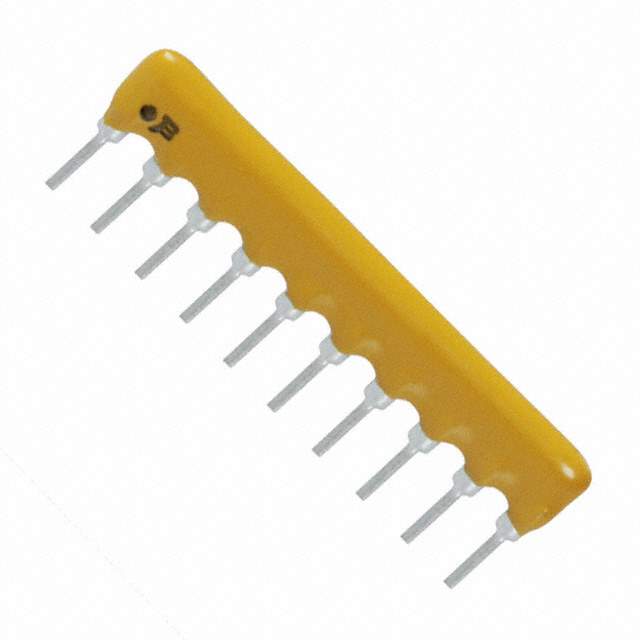

Description RES ARRAY 9 RES 22K OHM 10SIP / 22k Ohm ±2% 200mW Power Per Element Bussed 9 Resistor Network/Array ±100ppm/°C 10-SIP
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Manufacturer Bourns Inc.
Packaging Bulk
Product Status Obsolete
Circuit Type Bussed
Resistance (Ohms) 22k
Tolerance ±2%
Number of Resistors 9
Number of Pins 10
Power Per Element 200mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Through Hole
Case / Package 10-SIP
Supplier Device Package 10-SIP
Size / Dimension 0.998" L x 0.098" W (25.35mm x 2.49mm)
Height - Seated (Max) 0.200" (5.08mm)
Base Product Number 4610X
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0050
Other Part Number 4610X-1-223
Standard Package 100
Win Source Part Number 1328458-4610X-101-223
Ultra Librarian 3D Model Ultra Librarian 4610X-101-223 CAD Model

Description

The Bourns 4610X-101-223 is a bussed resistor network array with nine resistors and 22k ohms resistance.

  • Mounting Type: Through-Hole
  • Package: 10-SIP
  • Tolerance: ±2%
  • Temperature Coefficient: ±100ppm/°C
  • Power Per Element: 200mW
