Same model may have multiple batches, images only for reference.

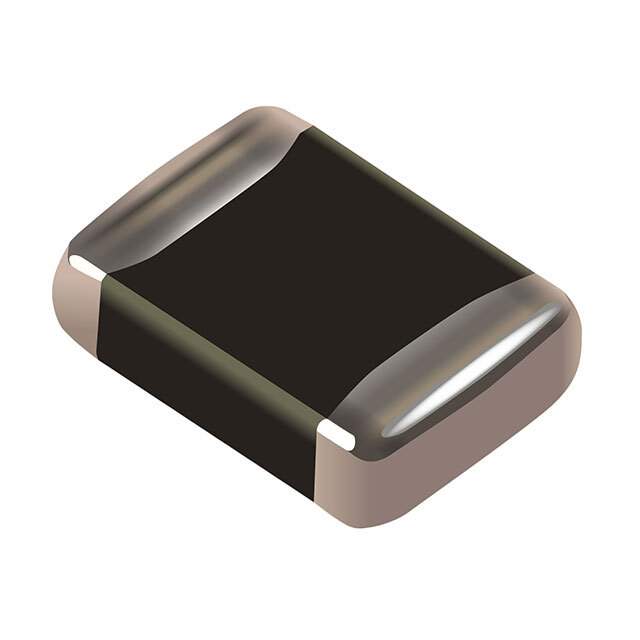

AV14K2220122NIR1HT Real Image
Same model may have multiple batches, images only for reference.

AV14K2220122NIR1HT

Part No AV14K2220122NIR1HT
Manufacturer Bourns Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR / 24 V 1.2 kA Varistor 1 Circuit Surface Mount, MLCV 2220 (5750 Metric)
Datasheet
AV14K2220122NIR1HT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Bourns Inc.
Series AVHT
Package Tape & Reel
Maximum AC Volts 14 V
Maximum DC Volts 16 V
Varistor Voltage (Min) 21.6 V
Varistor Voltage (Typ) 24 V
Varistor Voltage (Max) 26.4 V
Current - Surge 1.2 kA
Energy 5.8J
Number of Circuits 1
Capacitance @ Frequency 10000 pF @ 1 kHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 2220 (5750 Metric)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Other Names 118-AV14K2220122NIR1HTCT,118-AV14K2220122NIR1HTDKR,118-AV14K2220122NIR1HTTR
Standard Package 1,000
Win Source Part Number 1133250-AV14K2220122NIR1HT
Ultra Librarian 3D Model Ultra Librarian AV14K2220122NIR1HT CAD Model

Description

The AV14K2220122NIR1HT is a circuit protection electronic component that is part of the AVHT series. The AV14K2220122NIR1HT is manufactured by Bourns Inc..

  • Varistor Voltage (min): 21.6 V
  • Varistor Voltage (typ): 24 V
  • Varistor Voltage (max): 26.4 V
  • Maximum AC Volts: 14 V
  • Maximum DC Volts: 16 V
  • Energy: 5.8J
  • Current Surge: 1.2kA
  • Mounting Type: Surface Mount, MLCV
  • Package: Tape & Reel
  • Temperature Range: -55°C ~ 150°C (TA)
