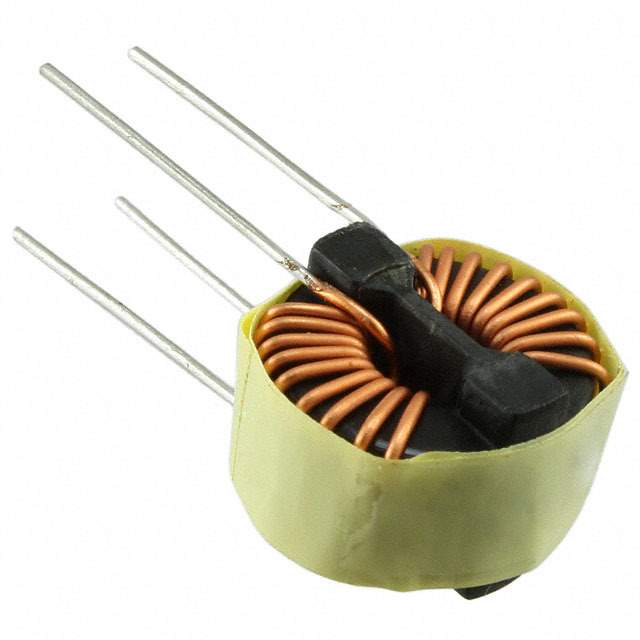

7111-RC Real Image
Same model may have multiple batches, images only for reference.

7111-RC

Part No 7111-RC
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 850UH 3A 2LN TH / 850 µH @ 1 kHz 2 Line Common Mode Choke Through Hole 3A DCR 30mOhm
Datasheet
7111-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series 7100
Package Bulk
Number of Lines 2
Inductance @ Frequency 850 µH @ 1 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 30mOhm
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Dimension 0.700" Dia x 0.550" W (17.78mm x 13.97mm)
Height (Max) 0.700" (17.78mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number 7111
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names Q5396740BBBB,7111RC
Standard Package 143
Win Source Part Number 1005742-7111-RC
Ultra Librarian 3D Model Ultra Librarian 7111-RC CAD Model

Description

The Bourns Inc. 7100 series common mode choke is a through-hole mounting type with 2 lines and a height of 0.700" (17.78mm).

  • Mounting Type: through-hole
  • Lines: 2
  • Height: 0.700" (17.78mm)
  • Inductance: 850 µH @ 1 kHz
  • DC Resistance (DCR): 30mOhm (Max)
  • Current Rating: 3A
  • Package: vertical, no base, 4 PC pin
  • Ideal for: filters and common mode chokes
