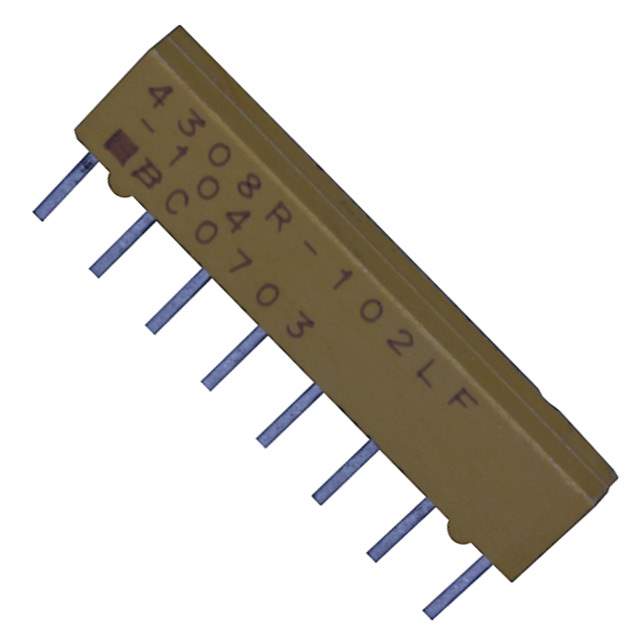

The 4308R-102-390LF is a thick film isolated resistor network manufactured by Bourns Inc. This component integrates multiple resistors into a single package, optimizing board space and simplifying circuit design. The 'LF' designation signifies lead-free compliance, adhering to RoHS standards.

Applications

• Current limiting
• Voltage division
• Pull-up/pull-down resistors in digital circuits
• Input protection for operational amplifiers
• Logic circuit termination

Features

• Isolated resistor configuration
• Thick film technology
• Compact 8-pin package
• Lead-free construction (RoHS compliant)
• Stable resistance values across temperature variations

Benefits

• Conserves board space compared to using individual resistors
• Eases circuit layout processes
• Enhances reliability by minimizing solder joint quantity
• Decreases the overall component count
• Complies with environmental regulations

Additional Details

The 4308R-102-390LF features a resistance value of 39 ohms. The '102' marking adheres to the EIA code, where the initial two digits indicate significant figures and the final digit represents the number of zeros. With an isolated configuration, each resistor operates independently. It has a power rating (typically around 0.125W per resistor or 0.75W for the entire package), and is designed for reflow soldering. The resistance tolerance generally falls within ±2% or ±5%, contingent upon the specific datasheet. The temperature coefficient of resistance (TCR) typically stands at ±100 ppm/°C.
