Same model may have multiple batches, images only for reference.

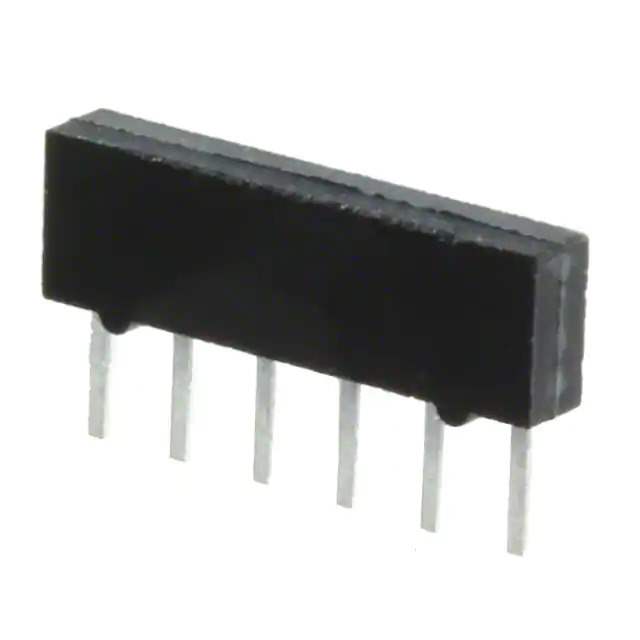

4306R-102-684LF Real Image
Same model may have multiple batches, images only for reference.

4306R-102-684LF

Part No 4306R-102-684LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 3 RES 680K OHM 6SIP / 680k Ohm ±2% 300mW Power Per Element Isolated 3 Resistor Network/Array ±100ppm/°C 6-SIP
Datasheet
4306R-102-684LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4300R
Package Tube
Product Status Active
Circuit Type Isolated
Resistance (Ohms) 680k
Tolerance ±2%
Number of Resistors 3
Resistor-Ratio-Drift 50ppm/°C
Number of Pins 6
Power Per Element 300mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case 6-SIP
Supplier Device Package 6-SIP
Size / Dimension 0.584" L x 0.085" W (14.83mm x 2.16mm)
Height - Seated (Max) 0.195" (4.95mm)
Base Product Number 4306R
Standard Package 35 pcs
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0050
California Prop 65 Warning Information
Win Source Part Number 856039-4306R-102-684LF
Ultra Librarian 3D Model Ultra Librarian 4306R-102-684LF CAD Model

Description

The 4300R resistor network is a compact and versatile component used in electronic circuits for combining multiple resistors into a single package.

  • Resistors: 3
  • Resistance: 680k Ohms
  • Tolerance: ±2%
  • Power Rating: 300mW per element
  • Mounting: Through Hole
  • Package: 6-SIP
  • Circuit Configuration: Isolated
  • Temperature Coefficient: ±100ppm/°C
  • Standard Package: 35 pcs
  • Manufacturer: Bourns Inc.
  • Applications: Telecommunications, automotive electronics, and industrial control systems
