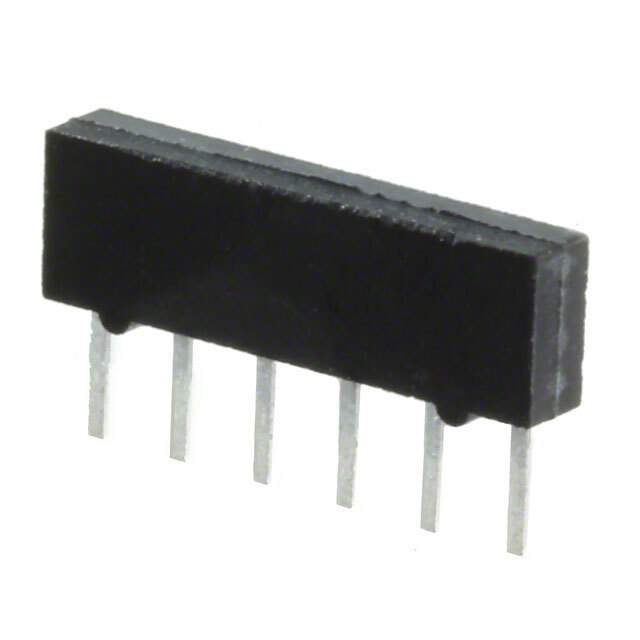

4306R-101-470LF

Part No 4306R-101-470LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 5 RES 47 OHM 6SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Bourns Inc.
Packaging Bulk
Circuit Type Bussed
Resistance (Ohms) 47
Tolerance ±1Ohm
Number of Resistors 5
Resistor-Ratio-Drift 50ppm/°C
Number of Pins 6
Power Per Element 200mW
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Style Through Hole
Manufacturer Package 6-SIP
Supplier Device Package 6-SIP
Parts Dimension 0.584" L x 0.085" W (14.83mm x 2.16mm)
Height - Seated (Maximum) 0.195" (4.95mm)
Family Part Number 4306R
Manufacturer Pack Quantity 35
MSL Level 1 (Unlimited)
Win Source Part Number 729034-4306R-101-470LF
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 4306R-101-470LF CAD Model

Description

The Bourns Inc. 4306R-101-470LF is a Bussed Circuit Type Resistor with a resistance of 47 Ohms and a tolerance of ±1Ohm.

  • Resistance: 47 Ohms
  • Tolerance: ±1Ohm
  • Temperature Coefficient: ±250ppm/°C
  • Power per Element: 200mW
  • Resistive Elements: 5
  • Pins: 6
  • Mounting: through hole
  • Operating Temperature Range: -55°C to 125°C
  • Height: 0.195" (4.95mm)
  • Packaging: 6-SIP
  • Series: 4306R
  • Manufacturer Pack Quantity: 35
  • Resistor Ratio Drift: 50ppm/°C
