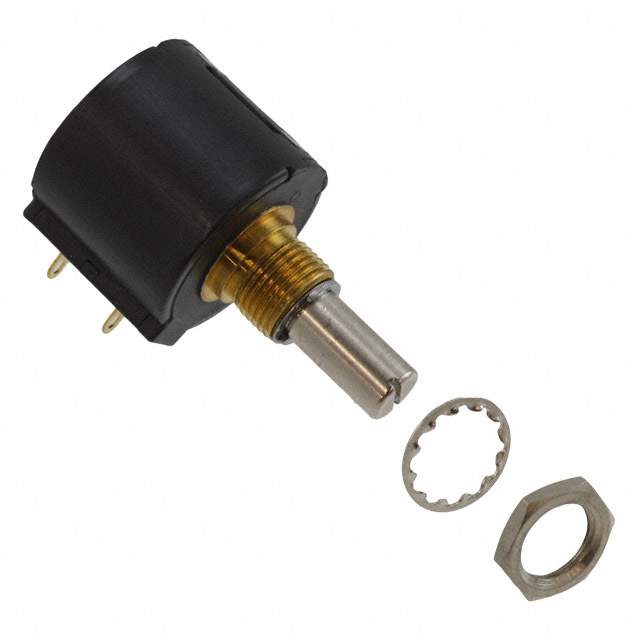

Same model may have multiple batches, images only for reference.

3549S-1AA-502A

Name: 3549S-1AA-502A
Brand: Bourns Inc.
SKU: 1001725
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	3549S-1AA-502A
Manufacturer	Bourns Inc.
Catalog	Potentiometers, Variable Resistors
Description	POT 5K OHM 2W WIREWOUND LINEAR / 5k Ohm 1 Gang Linear Panel Mount Potentiometer None 10.0 Kierros Wirewound 2W Solder Lug
Datasheet	3549S-1AA-502A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors>Rotary Potentiometers, Rheostats
Mfr	Bourns Inc.
Series	3549
Package	Tray
Resistance (Ohms)	5k
Tolerance	±3%
Power (Watts)	2W
Built in Switch	None
Number of Turns	10
Taper	Linear
Number of Gangs	1
Adjustment Type	User Defined
Temperature Coefficient	±50ppm/°C
Rotation	3600°
Resistive Material	Wirewound
Termination Style	Solder Lug
Actuator Type	Slotted
Actuator Length	0.813" (20.64mm)
Actuator Diameter	0.250" (6.35mm)
Bushing Thread	3/8-32
Mounting Type	Panel Mount
Size - Body	Round - 0.885" Dia (22.48mm)
Base Product Number	3549S
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.31.0000
Other Names	3549S1AA502A
Standard Package	5
Win Source Part Number	1001725-3549S-1AA-502A
Ultra Librarian 3D Model	Ultra Librarian 3549S-1AA-502A CAD Model

Alternative Products

Description

The 3549S-1AA-502A is a rotary potentiometer from Bourns Inc. used in electronics for variable resistance.

Manufacturer: Bourns Inc.
Potentiometer Type: Rotary
Resistance: 5k ohms
Power Rating: 2W
Tolerance: ±3%
Temperature Coefficient: ±50ppm/°C
Actuator Type: Slotted
Actuator Length: 0.813" (20.64mm)
Actuator Diameter: 0.250" (6.35mm)
Bushing Thread: 3/8-32
Mounting Type: Panel Mount
Taper: Linear
Turns: 10
Application: Automation and Process Control, Power Management, and Consumer Electronics
