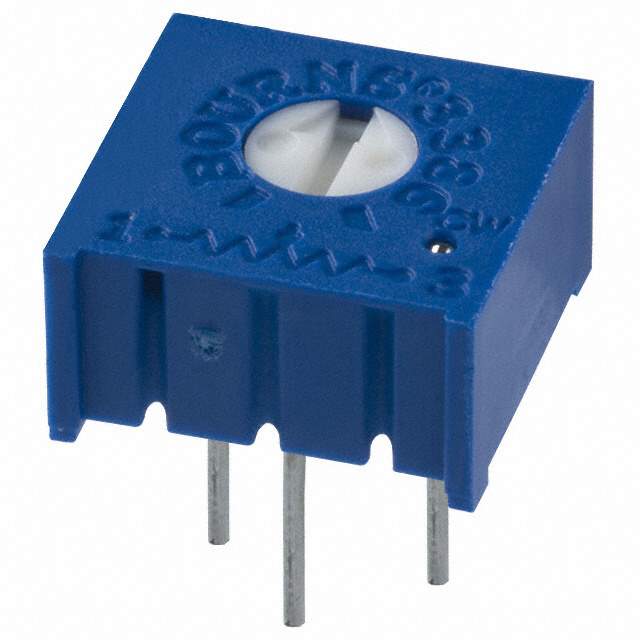

3386F-1-502LF Real Image
Same model may have multiple batches, images only for reference.

3386F-1-502LF

Part No 3386F-1-502LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 5K OHM 0.5W PC PIN TOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Tube
Resistance 5 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Dimension Square - 0.375" x 0.375" Face x 0.190" H (9.53mm x 9.53mm x 4.83mm)
Part Number Series 3386F
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806276-3386F-1-502LF
Ultra Librarian 3D Model Ultra Librarian 3386F-1-502LF CAD Model

Description

The 806276-3386F-1-502LF is a top-adjustment cermet potentiometer manufactured by Bourns Inc.

  • Resistance: 5 kOhms
  • Tolerance: ±10%
  • Power Rating: 0.5W
  • Operating Temperature Range: -55°C to 125°C
  • Dimension: 0.375" x 0.375" Face x 0.190" H (9.53mm x 9.53mm x 4.83mm)
  • Mounting Type: Through Hole
  • Temperature Coefficient: ±100ppm/°C
  • Packaging: Tube
  • Popularity: Medium
