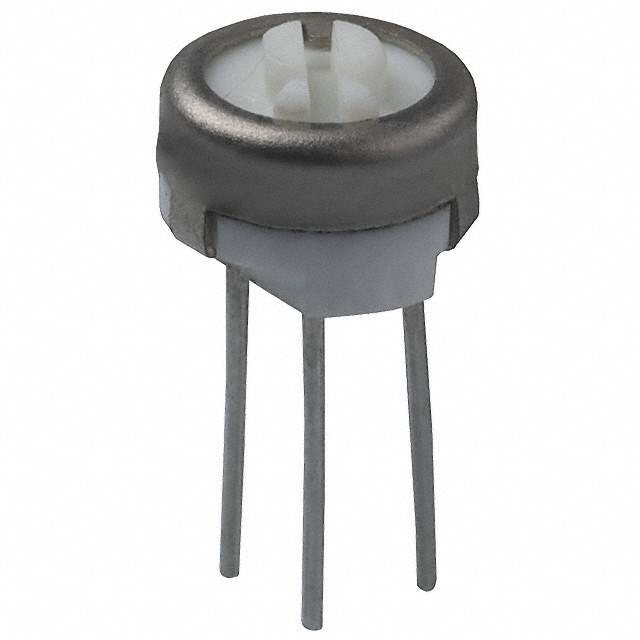

3329H-1-203LF

Part No 3329H-1-203LF
Manufacturer Bourns Inc.
Catalog Potentiometers, Variable Resistors
Description TRIMMER 20K OHM 0.5W PC PIN TOP / 20 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3329 - Sealed
Package Tube
Resistance 20 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Dimension Round - 0.250" Dia (6.35mm)
Base Product Number 3329H
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Other Names 3329H-203LF,3329H-1-203LF-ND,3329H1203LF
Standard Package 100
Win Source Part Number 976924-3329H-1-203LF
Ultra Librarian 3D Model Ultra Librarian 3329H-1-203LF CAD Model

Description

3329H-1-203LF from Bourns Inc. is a potentiometer/variable resistor option used in designs that require adjustable resistance for calibration, trimming, or control functions. Components in this category are commonly selected for signal tuning, voltage adjustment, sensor interface calibration, and board-level parameter setting in industrial, instrumentation, telecommunications, and general electronic equipment. Bourns is widely recognized for offering reliable passive components, which makes this part relevant for engineers seeking established sourcing channels and manufacturer support. The current lifecycle status for 3329H-1-203LF is information not available, so design teams should verify availability and long-term supply directly with Bourns or authorized distributors before committing to new production. RoHS compliance status is also information not available in the provided data. For compliance-sensitive applications, engineers and procurement teams should confirm the latest environmental declarations, datasheet details, and distributor documentation before purchase or release to production.
