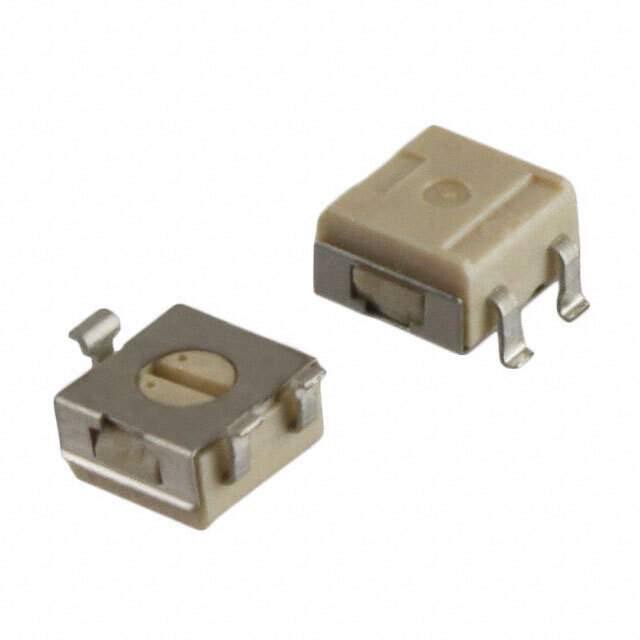

3314R-1-203E

Part No 3314R-1-203E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 20K OHM 0.25W SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 20k
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Bottom Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style Gull Wing
Dimension Square - 0.177" x 0.177" Face x 0.100" H (4.50mm x 4.50mm x 2.55mm)
Win Source Part Number 006099-3314R-1-203E
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 3314R-1-203E CAD Model

Description

Product Description

The 3314R-1-203E is a cutting-edge trimmer potentiometer designed to meet the dynamic needs of modern electronic circuitry. Its sophisticated engineering ensures precise control and lasting performance.

Applications

  • Wireless communication devices
  • Advanced automotive systems
  • High-performance audio gear
  • Renewable energy systems optimization

Features and Benefits

  • Precision Tuning: For exact resistance adjustments needed in complex circuitry.
  • Long-lasting Material: Provides durability against stress and wear.
  • Flexible Deployment: Easily integrates across multiple electronic setups.
  • Consistent Efficiency: Ensures reliable operation under variable conditions.

Additional Details

Ideal for modern applications demanding high accuracy, the 3314R-1-203E delivers dependable performance and straightforward customization for enhanced circuit execution.
