3314G-1-103E

Part No 3314G-1-103E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers

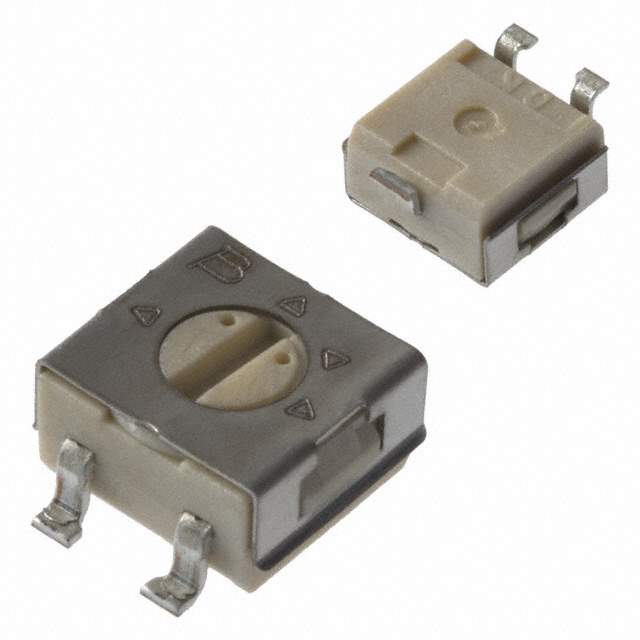

Description TRIMMER 10K OHM 0.25W SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 10k
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style Gull Wing
Dimension Square - 0.177" x 0.177" Face x 0.100" H (4.50mm x 4.50mm x 2.55mm)
Win Source Part Number 006080-3314G-1-103E
Family Name 3314
Introduction Date December 24, 2006
ECCN EAR99
Country of Origin TaiwanThailand
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 3314G-1-103E CAD Model

Description

Overview

The 3314G-1-103E potentiometer combines reliability with functionality, designed for electronic applications that demand high-resolution adjustments and extended service life.

Applications

  • Aerospace Electronics
  • Telecommunications Networks
  • Custom Audio Systems
  • High-Endurance Industrial Equipment

Features and Benefits

  • High Resolution: Eradicates unwanted drift and provides stable adjustments.
  • Robust Build: Offers exceptional durability for rigorous tasks.
  • Space Efficiency: Its compact footprint is suitable for modern electrical assemblies.
  • Enhanced Compatibility: Integrates seamlessly with other components in complex systems.

This component is essential for sectors requiring precision regulation and fine adjustments, convincing professionals of its versatile capabilities.
