Same model may have multiple batches, images only for reference.

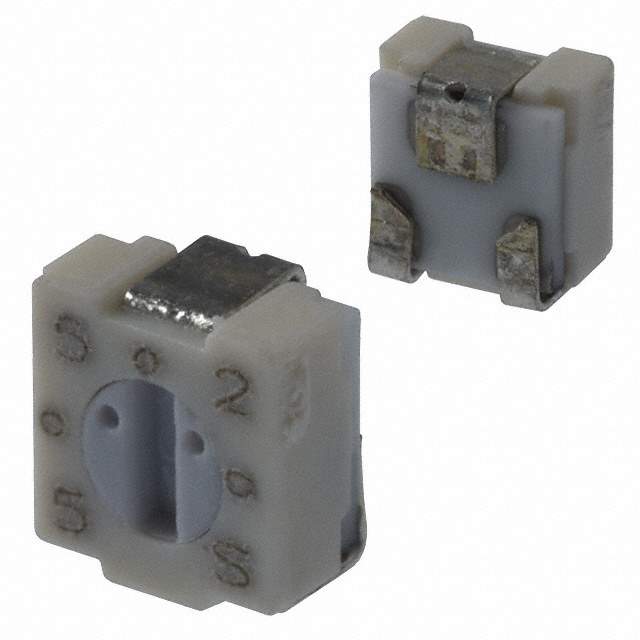

3313J-1-504E Real Image
Same model may have multiple batches, images only for reference.

3313J-1-504E

Part No 3313J-1-504E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500K OHM 0.125W SMD
Datasheet
3313J-1-504E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3313 - Sealed
Packaging Reel package
Resistance (Ohms) 500k
Power (Watts) 0.125W, 1/8W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD
Termination Style J Lead
Dimension Rectangular - 0.138" x 0.126" Face x 0.087" H (3.50mm x 3.20mm x 2.20mm)
Win Source Part Number 763265-3313J-1-504E
Popularity Medium
Supply and Demand Status Balance
Family Name 3313
Introduction Date September 25, 1997
ECCN EAR99
Country of Origin Taiwan
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 3313J-1-504E CAD Model

Description

The Bourns Inc. 763265-3313J-1-504E is a medium-popularity potentiometer electronic component.

  • Series: Trimpot 3313 - Sealed
  • Packaging: Reel package
  • Termination Style: J Lead
  • Tolerance: ±20%
  • Temperature Coefficient: ±100ppm/°C
  • Power: 0.125W, 1/8W
  • Resistance: 500k ohms
  • Compliance: Halogen Free
