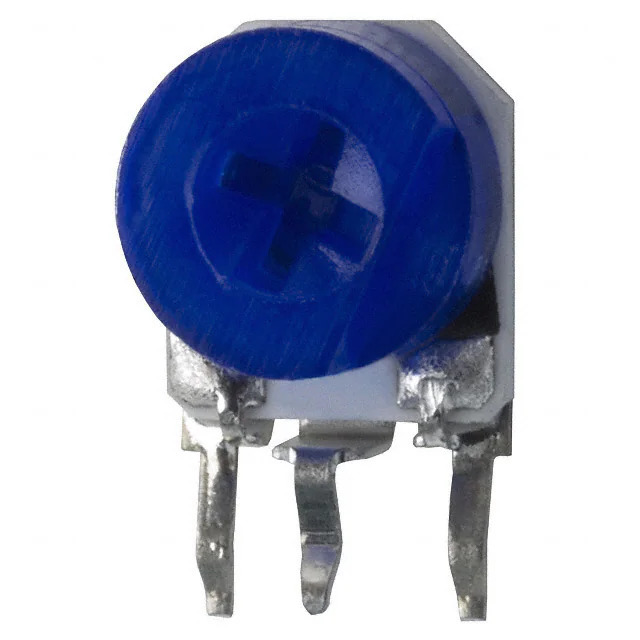

3306W-1-101 Bourns Inc.
Same model may have multiple batches, images only for reference.

3306W-1-101

Part No 3306W-1-101
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 100 OHM 0.2W PC PIN SIDE / 100 Ohms 0.2W, 1/5W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment
Datasheet
3306W-1-101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3306 - Open Frame
Package Bulk
Product Status Active
Resistance 100 Ohms
Power (Watts) 0.2W, 1/5W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.268" x 0.319" Face (6.81mm x 8.10mm)
Base Product Number 3306W
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 1354441-3306W-1-101
Ultra Librarian 3D Model Ultra Librarian 3306W-1-101 CAD Model

Description

The 3306W-1-101 is a trimmer potentiometer from Bourns Inc. Bourns Inc.

  • Series: Trimpot® 3306 - Open Frame
  • Size: 0.268" x 0.319" Face (6.81mm x 8.10mm)
  • Resistance: 100 Ohms
  • Tolerance: ±25%
  • Power: 0.2W
  • Mounting: Through-Hole
  • REACH: unaffected
  • ECCN: EAR99
  • Temperature Coefficient: ±250ppm/°C
  • Termination: PC Pins
  • Adjustment: Side Adjustment
  • Resistive Material: Cermet
