Same model may have multiple batches, images only for reference.

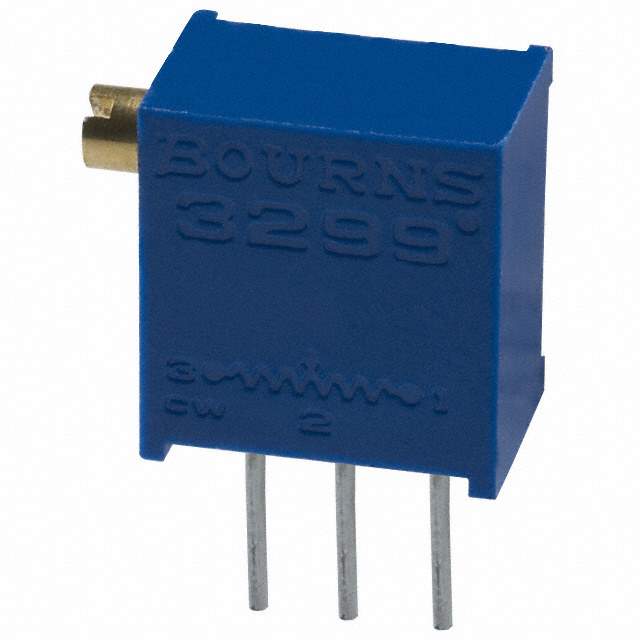

3299X-1-105LF Real Image
Same model may have multiple batches, images only for reference.

3299X-1-105LF

Part No 3299X-1-105LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 1M OHM 0.5W PC PIN
Datasheet
3299X-1-105LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3299 - Sealed
Packaging Tube
Resistance (Ohms) 1M
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.395" x 0.240" Face x 0.395" H (10.03mm x 6.10mm x 10.03mm)
Win Source Part Number 763249-3299X-1-105LF
Family Name 3299
Introduction Date September 25, 1997
ECCN EAR99
Country of Origin Costa Rica
Halogen Free Compliant
Estimated EOL Date 2025
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3299X-1-105LF CAD Model

Description

The Bourns Inc. 3299X-1-105LF is a trimpot 3299-sealed potentiometer that comes in a tube packaging.

  • Manufacturer: Bourns Inc.
  • Product: 3299X-1-105LF
  • Termination Style: PC pins
  • Mounting Style: Through-hole
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power: 0.5W, 1/2W
  • Resistance: 1M ohms
  • Adjustment Type: Side adjustment
  • Resistive Material: Cermet
  • Number of Turns: 25
  • Family Name: 3299
  • Applications: Potentiometers and variable resistors
  • Dimension: 0.395" x 0.240" face x 0.395" H (10.03mm x 6.10mm x 10.03mm)
  • Supply: Limited
  • Popularity: Medium
