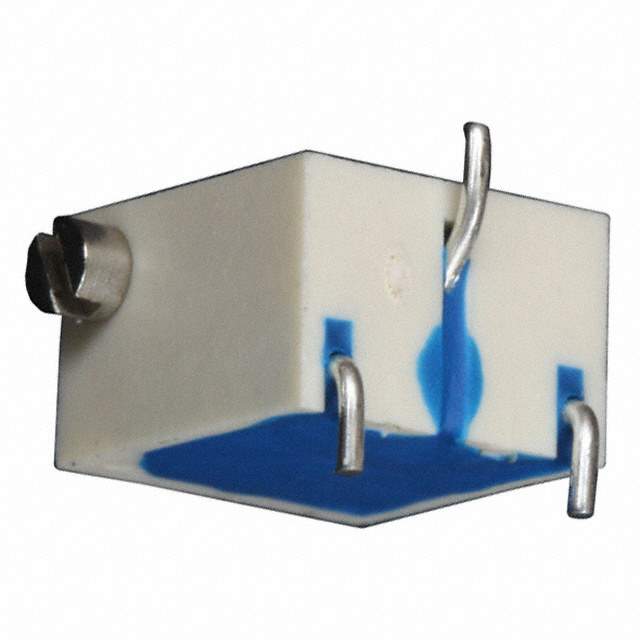

3269X-1-503G Real Image
Same model may have multiple batches, images only for reference.

3269X-1-503G

Part No 3269X-1-503G
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 50K OHM 0.25W GW SIDE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Resistance 50 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style SMD
Termination Style Gull Wing
Dimension Rectangular - 0.250" x 0.170" Face x 0.293" H (6.35mm x 4.32mm x 7.44mm)
Part Number Series 3269X
Manufacturer Pack Quantity 500
MSL Level 2 (1 Year)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812107-3269X-1-503G
Ultra Librarian 3D Model Ultra Librarian 3269X-1-503G CAD Model

Description

The Bourns Inc. 3269X-1-503G is a side adjustment type SMD cermet potentiometer.

  • Power Rating: 0.25W, 1/4W
  • Resistance: 50 kOhms (±10%)
  • Temperature Coefficient: ±100ppm/°C
  • Number of Turns: 12
  • Dimensions: 0.250" x 0.170" face x 0.293" H (6.35mm x 4.32mm x 7.44mm)
  • Termination Style: Gull-wing
  • Supply and Demand Status: Limited
