Same model may have multiple batches, images only for reference.

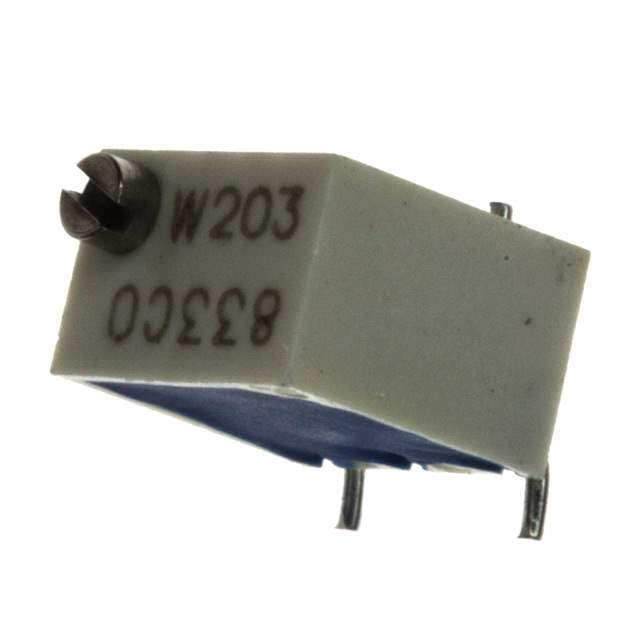

3269W-1-103G Real Image
Same model may have multiple batches, images only for reference.

3269W-1-103G

Part No 3269W-1-103G
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description Design Kit Trimming Potentiometers | TRIMMER 10K OHM 0.25W GW TOP ADJ
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Tape and Reel
Resistance 10 kOhms
Power (W) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Style SMD
Termination Style Gull Wing
Parts Dimension Rectangular - 0.250" x 0.170" Face x 0.293" H (6.35mm x 4.32mm x 7.44mm)
Family Part Number 3269W
Manufacturer Pack Quantity 500
MSL Level 2 (1 Year)
Win Source Part Number 1128145-3269W-1-103G
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3269W-1-103G CAD Model

Description

The Bourns Inc. 3269W series potentiometer is a top adjustment type variable resistor with a resistance of 10 kOhms and a tolerance of ±10%.

  • Resistive Material: The resistive material used in this potentiometer is cermet.
  • Turns: It has 12 number of turns and a temperature coefficient of ±100ppm/°C.
  • Mounting: The potentiometer is mounted on a surface with gull wing termination style.
  • Shape and Dimensions: It has a rectangular shape with dimensions of 0.250" x 0.170" face x 0.293" H (6.35mm x 4.32mm x 7.44mm) and a power rating of 0.25W or 1/4W.
  • Packaging: The potentiometer is available in tape and reel packaging and is a part of the variable resistors and potentiometers category.
  • Manufacturer Homepage: The manufacturer's homepage is www.bourns.com.
