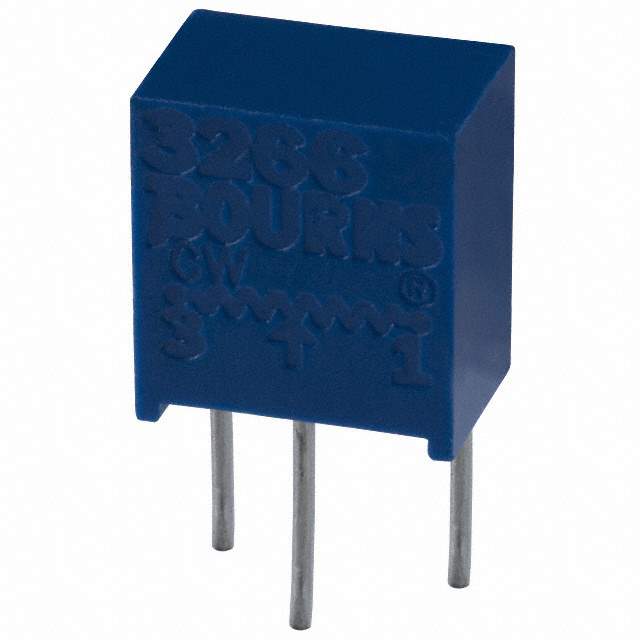

3266X-1-253LF Real Image
Same model may have multiple batches, images only for reference.

3266X-1-253LF

Part No 3266X-1-253LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 25KOHM 0.25W PC PIN SIDE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Tube
Resistance 25 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.250" x 0.170" Face x 0.270" H (6.35mm x 4.31mm x 6.85mm)
Part Number Series 3266X
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806336-3266X-1-253LF
Ultra Librarian 3D Model Ultra Librarian 3266X-1-253LF CAD Model

Description

The Bourns 3266X-1-253LF is a rectangular, cermet type of resistor that comes in a tube package.

  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.25W, 1/4W
  • Number of Turns: 12
  • Adjustment: Side
  • Resistance: 25 kOhms
  • Dimension: 0.250" x 0.170" Face x 0.270" H (6.35mm x 4.31mm x 6.85mm)
  • Popularity: Medium
  • Supply and Demand Status: Balance
  • Manufacturer Pack Quantity: 100
  • MSL Level: 1 (Unlimited)
