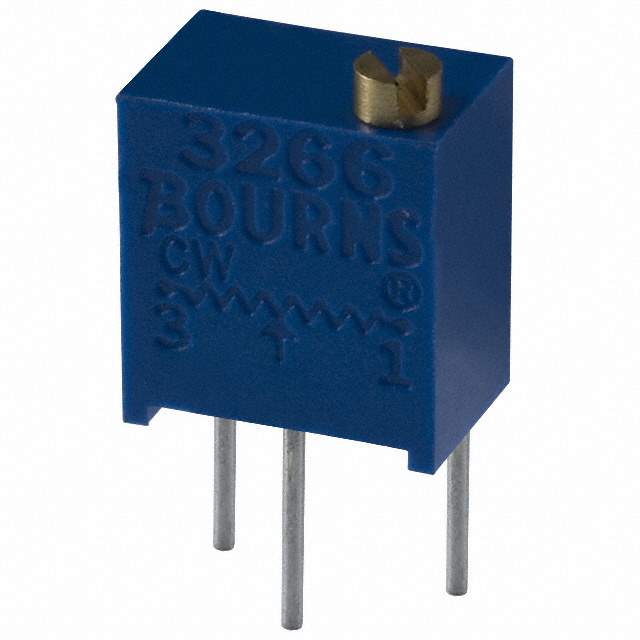

3266W-1-504LF Real Image
Same model may have multiple batches, images only for reference.

3266W-1-504LF

Part No 3266W-1-504LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500K OHM 0.25W PC PIN
Datasheet
3266W-1-504LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Tube/Rail
Status Active
Resistance (Ohms) 500k
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.250" x 0.170" Face x 0.270" H (6.35mm x 4.31mm x 6.85mm)
Win Source Part Number 1005010-3266W-1-504LF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3266W-1-504LF CAD Model

Description

Bourns Inc. presents the 3266W-1-504LF series cermet potentiometer.

  • Resistance: 500k Ohms
  • Tolerance: ±10%
  • Dimension: 0.250" x 0.170" face x 0.270" H (6.35mm x 4.31mm x 6.85mm)
  • Mounting: Through Hole
  • Power Rating: 0.25W
  • Temperature Coefficient: ±100ppm/°C
  • Turns: 12
  • Adjustment: Top
  • Resistive Material: Cermet
  • Package: Tube/Rail
  • Supply and Demand Status: Balanced
