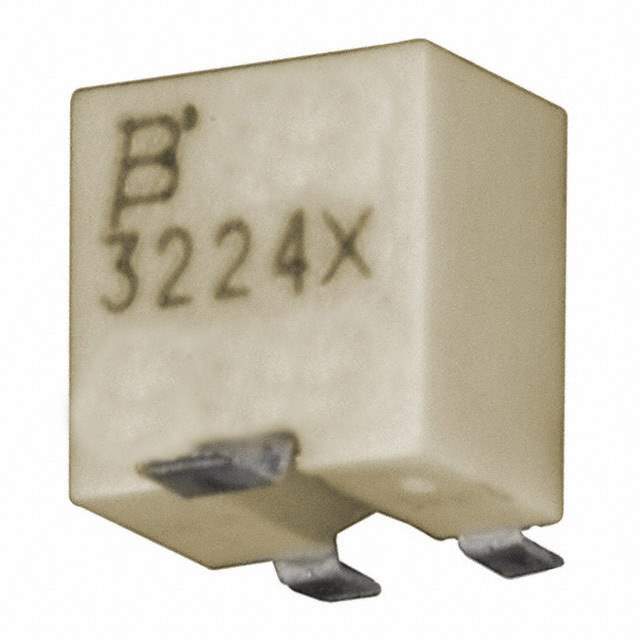

Same model may have multiple batches, images only for reference.

3224X-1-204E

Name: 3224X-1-204E
Brand: Bourns Inc.
SKU: 987857
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3224X-1-204E
Manufacturer	Bourns Inc.
Catalog	Potentiometers, Variable Resistors
Description	TRIMMER 200K OHM 0.25W GW TOP / 200 kOhms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 12.0 Turn Top Adjustment
Datasheet	3224X-1-204E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr	Bourns Inc.
Series	Trimpot® 3224 - Sealed
Package	Tape & Reel
Resistance	200 kOhms
Power (Watts)	0.25W, 1/4W
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of Turns	12
Adjustment Type	Top Adjustment
Resistive Material	Cermet
Mounting	SMD (SMT)
Termination Style	Gull Wing
Dimension	Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm)
Base Product Number	3224X
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.40.8050
Other Names	3224X-1-204ECT,3224X-1-204ETR,3224X1204E,3224X-1-204EDKR
Standard Package	200
Win Source Part Number	987857-3224X-1-204E
Ultra Librarian 3D Model	Ultra Librarian 3224X-1-204E CAD Model

Description

The Trimpot 3224 - Sealed is a series of trimmer potentiometers that are designed for use in a variety of electronic devices.

Resistance: 200 kOhms
Tolerance: ±10%
Package: tape and reel
Mounting Type: surface mount
Temperature Coefficient: ±100ppm/°C
Power Rating: 0.25W, 1/4W
Adjustment Type: top adjustment
Resistive Material: cermet
Dimensions: rectangular - 0.189" x 0.138" face (4.80mm x 3.50mm)
Standard Package: 200
ECCN: EAR99
