Same model may have multiple batches, images only for reference.

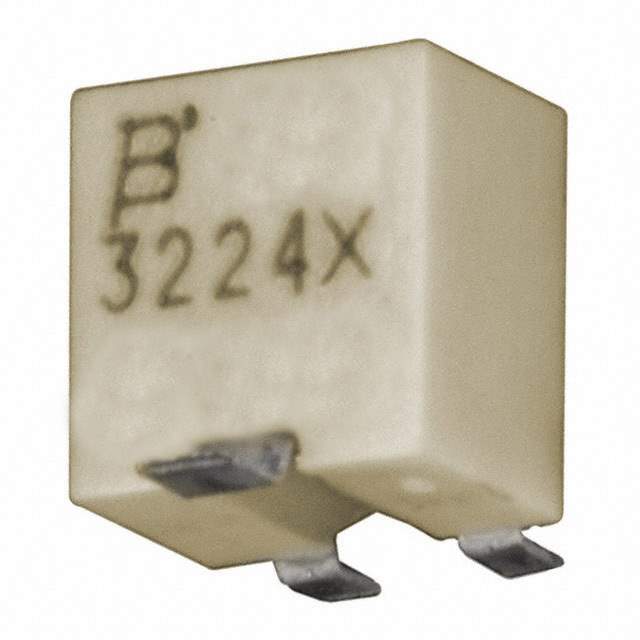

3224X-1-101E Real Image
Same model may have multiple batches, images only for reference.

3224X-1-101E

Part No 3224X-1-101E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 100 OHM 0.25W GW TOP ADJ
Datasheet
3224X-1-101E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers
Estimated Pruduction Lead Time 18 Weeks
Features 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet Turn Top Adjustment
Manufacturer Bourns Inc.
Series Trimpot® 3224 - Sealed
Package Reel - TR
Mounting Surface Mount
Family Name 3224X
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Other Part Number 3224X-1-101EDKR, 3224X-1-101ECT, 3224X1101E, 3224X-1-101ETR
Quantity per package 200
Popularity High
Supply and Demand Status Balance
Win Source Part Number 906552-3224X-1-101E
Ultra Librarian 3D Model Ultra Librarian 3224X-1-101E CAD Model

Description

The Bourns Inc. Trimpot® 3224 - Sealed is a 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet Turn Top Adjustment.

  • Family Name: 3224X
  • Potentiometer Type: potentiometer
  • Package: surface mount
  • Mounting: mounted on a reel
  • Status: a balance of supply and demand status
  • Popularity: high popularity in the market
  • Quantity per Package: 200
  • Estimated Production Lead Time: 18 weeks
  • REACH: affected
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
