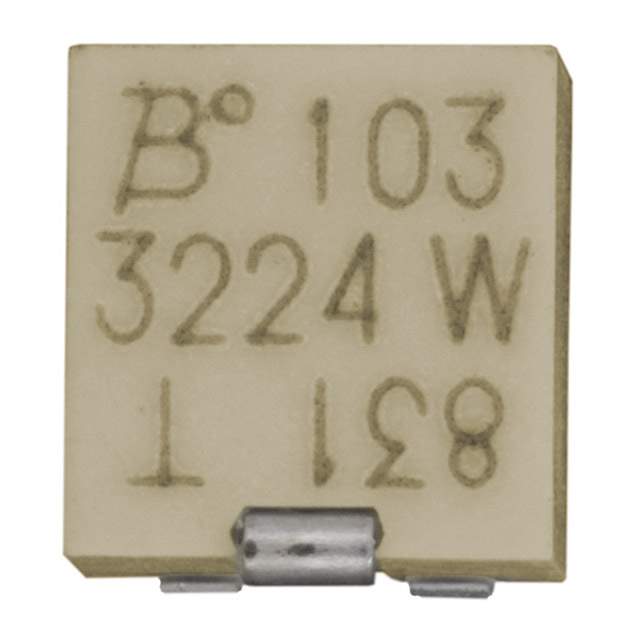

3224W-1-102E Bourns Inc. 3224W-1-102E Real Image 3224W-1-102E real image
Same model may have multiple batches, images only for reference.
3224W-1-102E Bourns Inc. 3224W-1-102E Real Image 3224W-1-102E real image

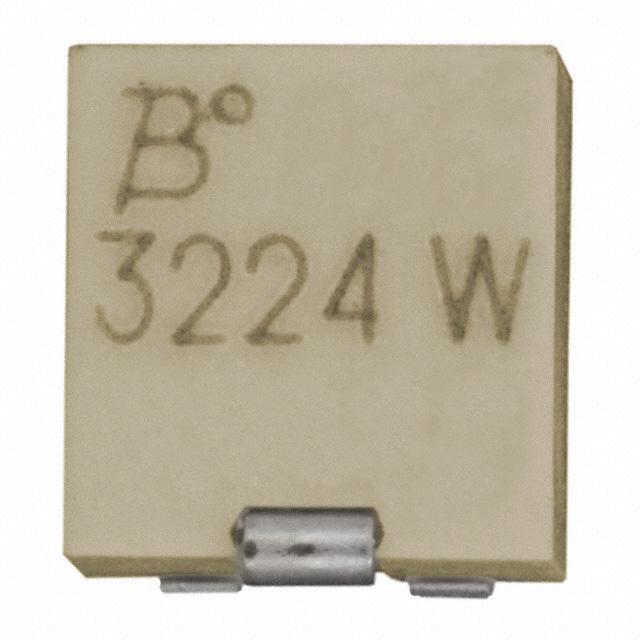

3224W-1-102E Bourns Inc. 3224W-1-102E Real Image 3224W-1-102E real image
Same model may have multiple batches, images only for reference.

3224W-1-102E

Part No 3224W-1-102E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description Res Cermet Trimmer 1K Ohm 10% 0.25W(1/4W) 12(Elec)Turns 1.5mm (4.8 X 3.9 X 5.3mm) J-Hook SMD T/R / TRIMMER 1K OHM 0.25W SMD
Datasheet
3224W-1-102E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 1k
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.189" x 0.138" Face x 0.209" H (4.80mm x 3.50mm x 5.30mm)
Win Source Part Number 006037-3224W-1-102E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Family Name 3224
Introduction Date March 01, 2005
ECCN EAR99
Country of Origin Costa Rica, Singapore
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 3224W-1-102E CAD Model

Description

Description

The 3224W-1-102E is a high-precision trimmer resistor designed for fine-tuning electrical circuits with impeccable accuracy. This component is essential for applications requiring exact resistance adjustments.

Features and Benefits

  • High stability and reliability for long-term use
  • Compact design to fit in various PCB layouts
  • Resistant to environmental conditions such as temperature and humidity

Applications/Projects

  • Telecommunications equipment
  • Medical devices
  • Test and measurement equipment

Additional Details

With a resistance range tailored to specific needs, the 3224W-1-102E supports precise circuit calibration, making it ideal for professional-grade electronics design.
