Same model may have multiple batches, images only for reference.

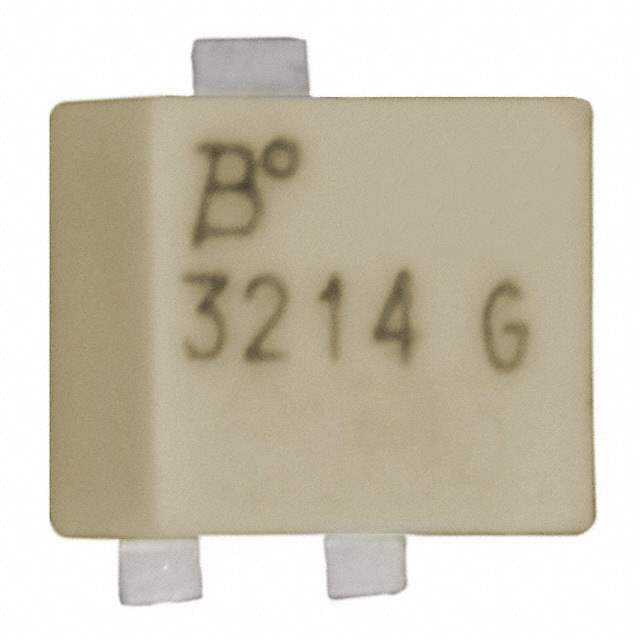

3214G-1-101E Real Image
Same model may have multiple batches, images only for reference.

3214G-1-101E

Part No 3214G-1-101E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 100 OHM 0.25W SMD
Datasheet
3214G-1-101E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3214 - Sealed
Packaging Reel package
Resistance (Ohms) 100
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 5
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting SMD
Termination Style Gull Wing
Dimension Rectangular - 0.189" x 0.138" Face x 0.154" H (4.80mm x 3.50mm x 3.90mm)
Win Source Part Number 763153-3214G-1-101E
Family Name 3214
Introduction Date November 12, 2001
ECCN EAR99
Country of Origin Costa Rica
Estimated EOL Date 2025
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3214G-1-101E CAD Model

Description

The Bourns Inc. electronic component with Win Source Part Number 763153-3214G-1-101E belongs to the Trimpot 3214 - Sealed series and comes in a reel package.

  • Termination Style: Gull-wing
  • Mounting: SMD
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.25W
  • Resistance: 100 ohms
  • Turns: 5
  • Adjustment Type: Side adjustment
  • Resistive Material: Cermet
  • Family Name: 3214
  • Categories: Potentiometers and variable resistors
  • Dimension: 0.189" x 0.138" Face x 0.154" H (4.80mm x 3.50mm x 3.90mm)
  • Alternative Parts: SM-4ETB100, SM-42TB101, 45GR100LFTB
  • Introduction Date: November 12, 2001
  • ECCN: EAR99
  • Country of Origin: Costa Rica
  • Estimated EOL Date: 2025
  • Supply and Demand: Limited
