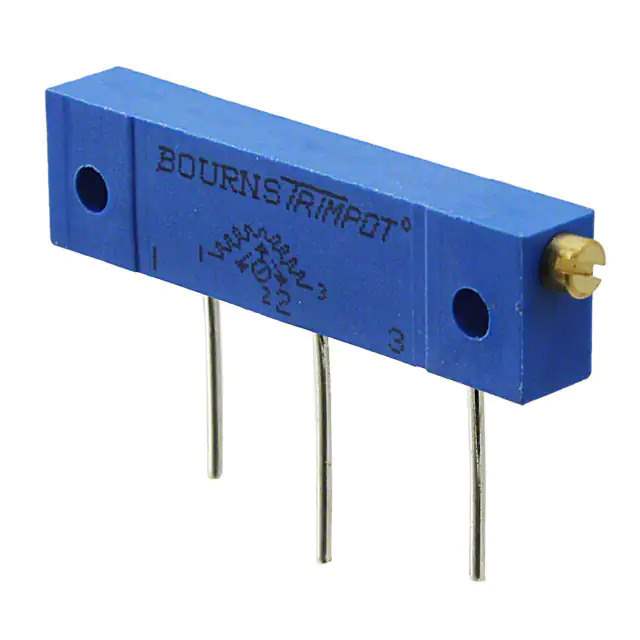

3059Y-1-501LF Real Image
Same model may have multiple batches, images only for reference.

3059Y-1-501LF

Part No 3059Y-1-501LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500 OHM 1W PC PIN SIDE / 500 Ohms 1W PC Pins Chassis Mount Trimmer Potentiometer Cermet 22.0 Turn Side Adjustment
Datasheet
3059Y-1-501LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3059 - Sealed
Package Tube
Product Status Active
Resistance 500 Ohms
Power (Watts) 1W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 22
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Chassis Mount
Termination Style PC Pins
Size / Dimension Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm)
Base Product Number 3059Y
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 846137-3059Y-1-501LF
Ultra Librarian 3D Model Ultra Librarian 3059Y-1-501LF CAD Model

Description

The 846137-3059Y-1-501LF is a high-quality potentiometer manufactured by Bourns Inc.

  • Series: Trimpot® 3059 - Sealed
  • Resistance: 500 Ohms
  • Size / Dimension: 0.315" x 0.190" face
  • Power (Watts): 1W
  • Tolerance: ±10%
  • Adjustment Type: Side
  • Termination Style: PC Pins
  • Resistive Material: Cermet
  • Temperature Coefficient: ±100ppm/°C
  • Mounting Type: Chassis Mount
  • Standard Package: 20 pcs
  • Product Status: Active
  • REACH: Affected
  • California Prop 65: Warning
