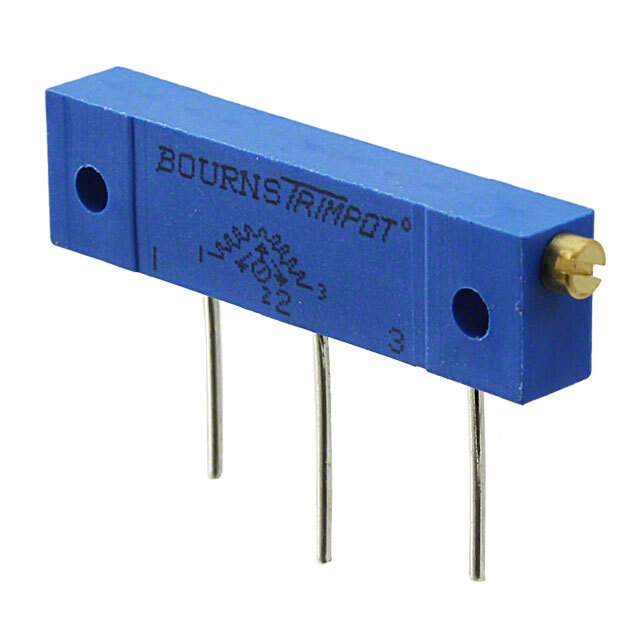

3059Y-1-202LF Real Image
Same model may have multiple batches, images only for reference.

3059Y-1-202LF

Part No 3059Y-1-202LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 2K OHM 1W PC PIN
Datasheet
3059Y-1-202LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3059 - Sealed
Packaging Tube
Resistance (Ohms) 2k
Power (Watts) 1W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 22
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Chassis Mount
Termination Style PC Pins
Dimension Rectangular - 0.315" x 0.190" Face x 1.250" L (8.00mm x 4.83mm x 31.75mm)
Win Source Part Number 763084-3059Y-1-202LF
Popularity Medium
Supply and Demand Status Limited
Family Name 3059
Introduction Date September 25, 1997
ECCN EAR99
Country of Origin Costa Rica
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 3059Y-1-202LF CAD Model

Description

The Bourns Inc. Trimpot 3059 - Sealed series product is from Bourns Inc.

  • Packaging: Tube
  • Termination Style: PC Pins
  • Mounting Style: Chassis Mount
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power (Watts): 1W
  • Resistance (ohms): 2k
  • Turns: 22
  • Adjustment Type: Side Adjustment
  • Resistive Material: Cermet
  • Family Name: 3059
  • Categories: Potentiometers and Variable Resistors
  • Dimension: Rectangular - 0.315" x 0.190" face x 1.250" L (8.00mm x 4.83mm x 31.75mm)
  • Alternative Parts: PV22Y202C01B00, PV22S202C01B00PV22S202A01B00
  • Introduction Date: September 25, 1997
  • ECCN: EAR99
  • Country of Origin: Costa Rica
  • Estimated EOL Date: 2027
  • Halogen Free: Yes
