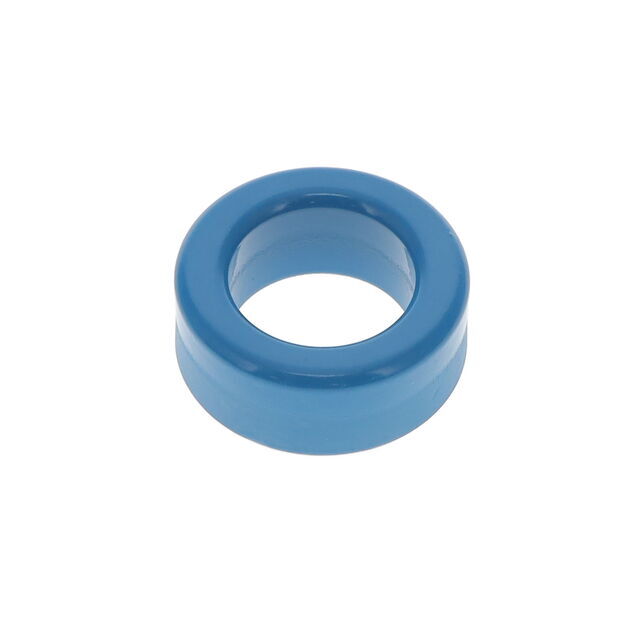

Same model may have multiple batches, images only for reference.
B64290L0657X065 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B64290L0657X065

Part No B64290L0657X065
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Epoxy T65 Ferrite Core Toroid Type Length Width 1.264" (32.10mm) Diameter 0.531" (13.50mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series TX30/20/12.5
Packaging Box
Core Type Toroid
Material T65
Diameter 1.264" (32.10mm)
Inductance Factor (Al) 5.4 µH
Tolerance ±30%
Gap Ungapped
Initial Permeability (µi) 5100
Core Factor (ΣI/A) mm⁻¹ 1.19
Effective Length (le) mm 77.02
Effective Area (Ae) mm2 64.66
Effective Magnetic Volume (Ve) mm3 4980.0
Finish Epoxy
Height 0.531" (13.50mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489430-B64290L0657X065
Ultra Librarian 3D Model Ultra Librarian B64290L0657X065 CAD Model
