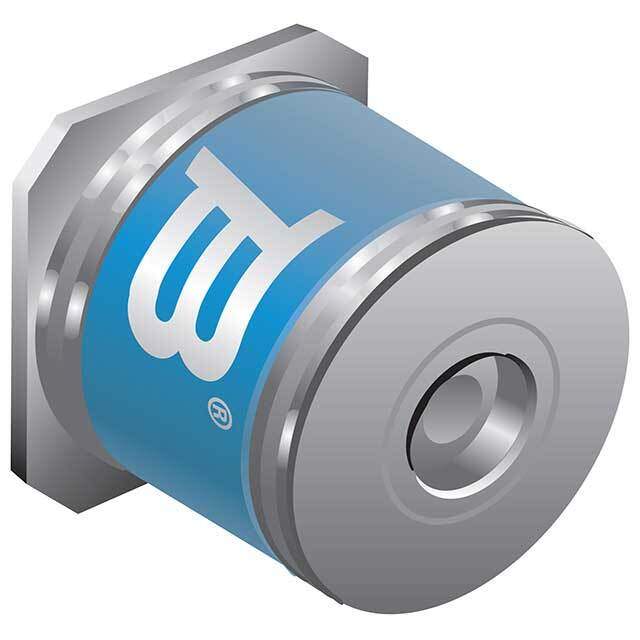

2029-09-SM-RPLF Real Image
Same model may have multiple batches, images only for reference.

2029-09-SM-RPLF

Part No 2029-09-SM-RPLF
Manufacturer Bourns Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 90V 20KA 2 POLE SMD / Gas Discharge Tube 90 V 20000A (20kA) ±20% 2 Pole Surface Mount
Datasheet
2029-09-SM-RPLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Gas Discharge Tube Arresters (GDT)
Mfr Bourns Inc.
Series 2029
Package Tape & Reel
Voltage - DC Spark Over (Nom) 90 V
Impulse Discharge Current (8/20µs) 20000A (20kA)
Tolerance ±20%
Number of Poles 2
Fail Short No
Mounting SMD (SMT)
Package / Case 2-SMD Cylinder Square End
Base Product Number 2029
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Other Names 2029-09-SM-RPLFTR,2029-09-SM-RPLFDKR,2029-09-SM-RPLFCT,2029-09-SM-RPLF-ND
Standard Package 500
Win Source Part Number 1177703-2029-09-SM-RPLF
Ultra Librarian 3D Model Ultra Librarian 2029-09-SM-RPLF CAD Model

Description

The Bourns Inc. 1177703-2029-09-SM-RPLF is a gas discharge tube arrester from the 2029 series.

  • Series: 2029
  • DC Spark Over Voltage: 90V ±20%
  • Poles: Two
  • Impulse Discharge Current: 20000A (20kA) @ 8/20µs
  • Package Type: 2-SMD Cylinder Square End
  • Mounting Type: SMD (SMT)
  • Win Source Part Number: 1177703-2029-09-SM-RPLF
