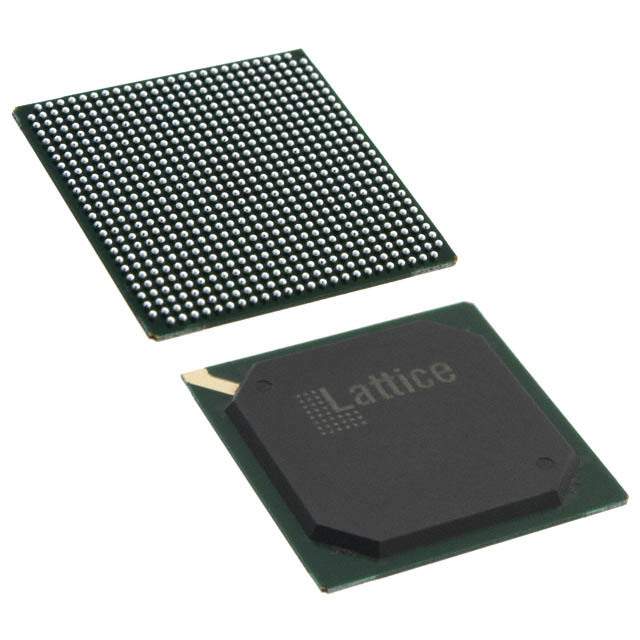

LFXP2-40E-5FN672C Real Image
Same model may have multiple batches, images only for reference.

LFXP2-40E-5FN672C

Part No LFXP2-40E-5FN672C
Manufacturer Lattice Semiconductor Corporation
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 540 I/O 672FBGA / FPGA LatticeXP2 Family 40000 Cells 90nm Technology 1.2V 672-Pin FBGA Tray
Datasheet
LFXP2-40E-5FN672C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Lattice Semiconductor Corporation
Series XP2
Number of LABs/CLBs 5000
Number of Logic Elements/Cells 40000
Total RAM Bits 906240
Number of I/O 540
Operating Supply Voltage 1.14 V ~ 1.26 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 672-BBGA
Manufacturer Package 672-FPBGA (27x27)
Win Source Part Number 778577-LFXP2-40E-5FN672C
Popularity Medium
Supply and Demand Status Limited
Family Name XP2-40
Introduction Date May 20, 2009
ECCN 3A991.d
Country of Origin Malaysia
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian LFXP2-40E-5FN672C CAD Model

Description

The Lattice Semiconductor XP2 series is an electronic component.

  • I/O: 540
  • LABs/CLBs: 5000
  • Logic Elements/Cells: 40000
  • Total RAM Bits: 906240
  • Operating Supply Voltage: 1.14 V to 1.26 V
  • Maximum Operating Temperature: 85 degrees Celsius
  • Supply and Demand Status: Limited
  • EOL Date: 2026
