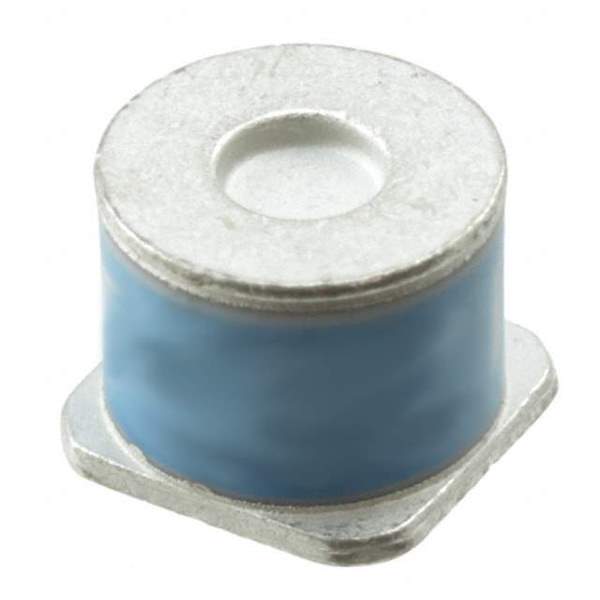

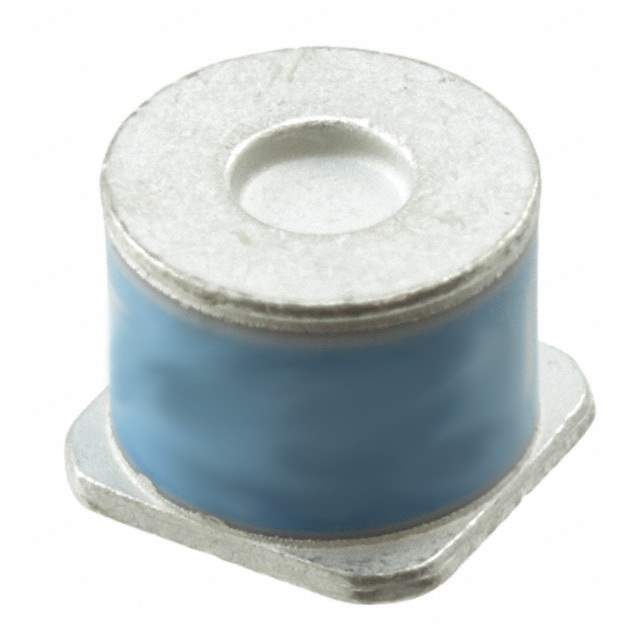

The 2027-15-SM-RPLF is a surface mount Gas Discharge Tube (GDT) from Bourns Inc., designed for overvoltage protection. This component is used to protect sensitive electronic equipment from transient voltage surges caused by lightning, power surges, or electrostatic discharge (ESD).

Applications

• Protection of telecom equipment
• Surge protection in power supplies
• Protection of data lines
• Use in security systems
• Protection of industrial control systems

Features

• Surface mount design
• Voltage rating of 150V
• Low capacitance
• High surge current capability
• RoHS compliant

Benefits

• Effective overvoltage protection
• Compact size for space-saving
• Fast response time
• Long life and reliability
• Environmentally friendly due to RoHS compliance

Additional Details

The 2027-15-SM-RPLF has a DC breakdown voltage of 150V. It features a low capacitance, typically around 1.5 pF, which minimizes signal distortion in high-frequency applications. The surge current capability is high, allowing it to withstand significant transient surges. The surface mount design allows for easy integration into automated assembly lines. This GDT is commonly used to protect sensitive electronic equipment from damage caused by overvoltage events. It is suitable for use in telecom equipment, power supplies, data lines, and security systems. The RoHS compliance ensures that the product meets environmental standards for hazardous substances. The GDT operates by conducting when the voltage across it exceeds its breakdown voltage, thereby diverting the surge current away from the protected circuit. It then returns to its non-conducting state when the surge has subsided.
