Same model may have multiple batches, images only for reference.

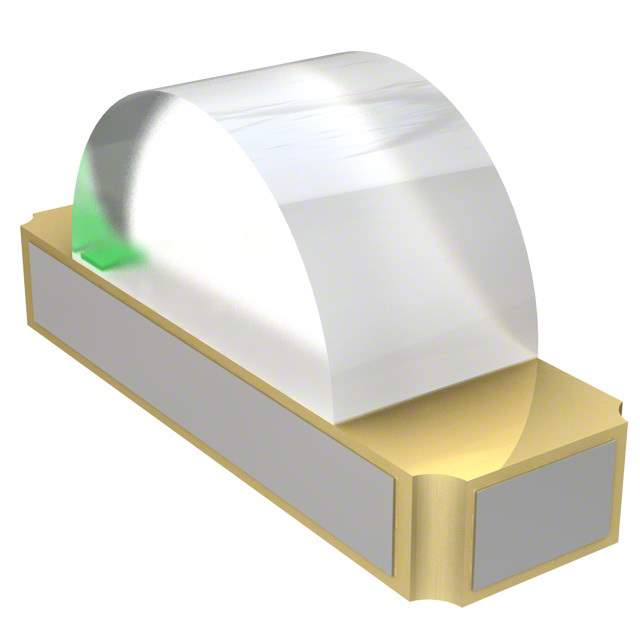

SM1204BC Real Image
Same model may have multiple batches, images only for reference.

SM1204BC

Part No SM1204BC
Manufacturer Bivar Inc.
Catalog Optics - LEDs - Light Pipes
Description LED SMD 1204 Bi-Color Red/Green (640nm/568nm) (7.2mcd/18mcd) Clr Lens
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package 1204
Case Code (Imperial) 1204
Case Code (Metric) 3210
Color Green, Red
Dominant Wavelength 628 nm
Forward Current 20 mA
Forward Voltage 2 V
Height 1 mm
Illumination Color Green, Red
Lead Free Lead Free
Length 3.2 mm
Lens Color Colorless
Lens Transparency Clear
Luminous Intensity 7.2 mcd
Max Operating Temperature 80 °C
Min Operating Temperature -30 °C
Mount Surface Mount
Number of Pins 2
Packaging Cut Tape
Power Rating 78 mW
RoHS Compliant
Schedule B 8541402000, 8541402000
Test Current 20 mA
Viewing Angle 130 °
Width 1 mm
Win Source Part Number 1202554-SM1204BC
Categories Optics - LEDs - Light Pipes
Manufacturer Bivar Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SM1204BC CAD Model

Description

The SM1204BC is a colorless, clear light pipe LED with a 130 ° viewing angle.

  • Viewing Angle: 130 °
  • Forward Voltage: 2V
  • Luminous Intensity: 7.2 mcd
  • Forward Current: 20mA
  • Power Rating: 78mW
  • Pins: 2
  • Length: 3.2mm
  • Height: 1mm
  • Mounting: Surface mountable
  • Case/Package: 1204
  • RoHS Compliant: Yes
  • Suitability: Suitable for use in optics - LEDs - light pipes applications.
