Same model may have multiple batches, images only for reference.

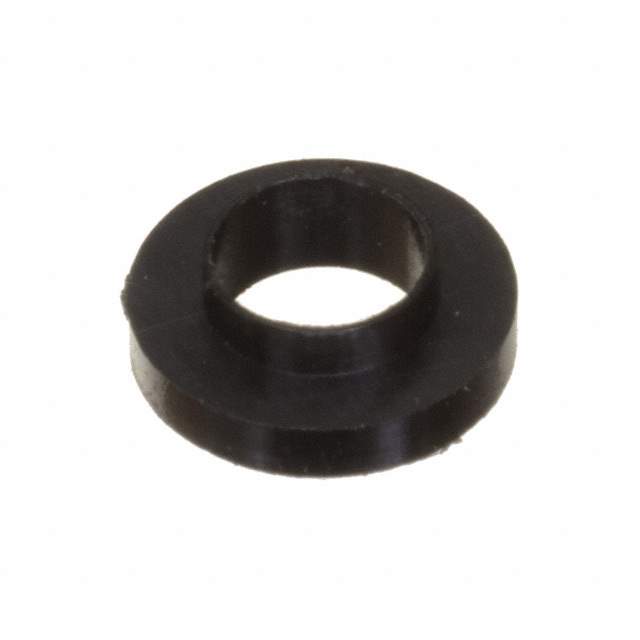

SW-032-135 Real Image
Same model may have multiple batches, images only for reference.

SW-032-135

Part No SW-032-135
Manufacturer Bivar Inc.
Catalog Washers - Bushing, Shoulder
Datasheet
SW-032-135 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Hardware, Fasteners, Accessories>Washers - Bushing, Shoulder
Mfr Bivar Inc.
Series SW
Package Bag
Thread/Screw/Hole Size #4
Diameter - Inside 0.116" (2.95mm)
Diameter - Outside 0.215" (5.46mm)
Diameter - Shoulder 0.130" (3.30mm)
Thickness - Overall 0.071" (1.80mm)
Length - Below Head 0.032" (0.81mm)
Material Polyphenylene Sulfide, Glass Filled
Base Product Number SW-032
Other Names 492-2301,SW-032-135
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 3926.90.4590
Win Source Part Number 1275030-SW-032-135
Ultra Librarian 3D Model Ultra Librarian SW-032-135 CAD Model

Description

The SW-032-135 is a washer-bushing-shoulder component from Bivar Inc.

  • Overall Thickness: 0.071 inches (1.80mm)
  • Outside Diameter: 0.215 inches (5.46mm)
  • Inside Diameter: 0.116 inches (2.95mm)
  • Length Below Head: 0.032 inches (0.81mm)
  • Material: Polyphenylene sulfide, glass filled material
  • Package: Bag package
  • Thread/Screw/Hole Size: #4
  • ECCN: EAR99 compliant
  • Application: Ideal for use in hardware, fasteners, and accessories applications.
