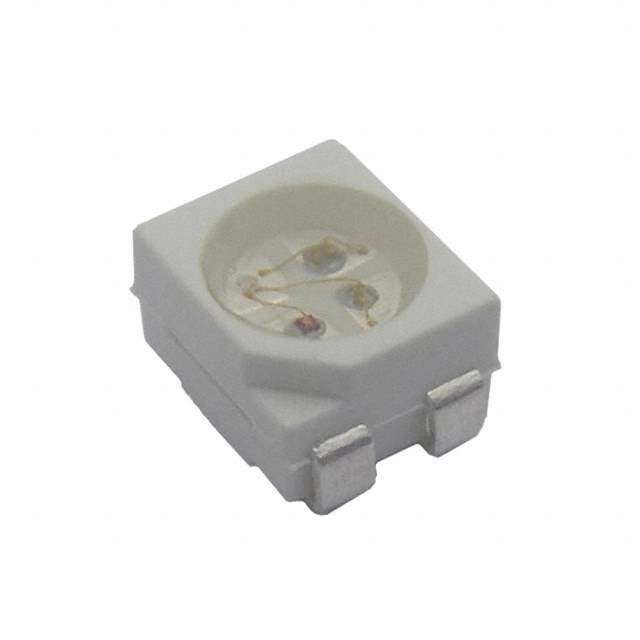

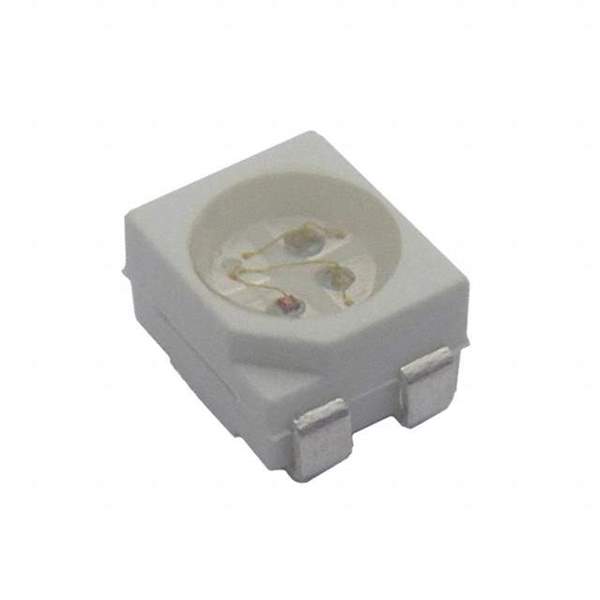

Same model may have multiple batches, images only for reference.

SMTL4-SBC-RB

Name: SMTL4-SBC-RB
Brand: Bivar Inc.
SKU: 1242346
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMTL4-SBC-RB
Manufacturer	Bivar Inc.
Catalog	LED Indication - Discrete
Description	LED BLUE/RED CLEAR 4PLCC SMD / Blue, Red 470nm Blue, 631nm Red LED Indication - Discrete 3.2V Blue, 1.9V Red 4-PLCC
Datasheet	SMTL4-SBC-RB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Mfr	Bivar Inc.
Package	Tape & Reel
Color	Blue, Red
Configuration	Independent
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	285mcd Blue, 180mcd Red
Lens Style	Round with Flat Top
Lens Size	2.40mm Dia
Voltage - Forward (Vf) (Typ)	3.2V Blue, 1.9V Red
Current - Test	20mA Blue, 20mA Red
Viewing Angle	120°
Mounting	SMD (SMT)
Wavelength - Dominant	470nm Blue, 631nm Red
Package / Case	4-PLCC
Supplier Device Package	4-PLCC
Dimension	3.20mm L x 2.80mm W
Height (Max)	2.05mm
Base Product Number	SMTL4
Other Names	492-2189-6,492-2189-2,492-2189-1
Standard Package	2,000
MSL Level	4 (72 Hours)
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1242346-SMTL4-SBC-RB
Ultra Librarian 3D Model	Ultra Librarian SMTL4-SBC-RB CAD Model

Alternative Products

Description

The SMTL4-SBC-RB is an independent configuration blue and red LED from Bivar Inc. It is a 4-PLCC round with a flat top lens style LED with a colorless lens and a clear lens transparency.

Viewing Angle: 120 degrees
Millicandela Rating: 285mcd for blue and 180mcd for red
Voltage Rating: 3.2V for blue and 1.9V for red @ 20mA for both
Wavelength at Dominant: 470nm for blue and 631nm for red
Package: Tape and reel with a standard package of 2,000
Dimension: 3.20mm L x 2.80mm W
Lens Size: 2.40mm diameter
Series: SMTL4
