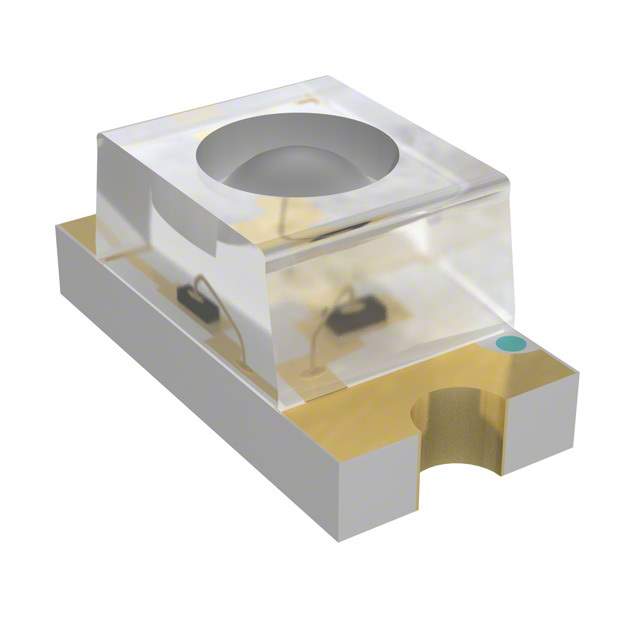

SM1206BWC-IL Real Image
Same model may have multiple batches, images only for reference.

SM1206BWC-IL

Part No SM1206BWC-IL
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED BLUE CLEAR 1206 SMD / Blue 470nm LED Indication - Discrete 3.3V 1206 (3216 Metric)
Datasheet
SM1206BWC-IL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel (TR)
Color Blue
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 225mcd
Lens Style Round with Flat Top
Lens Size 1.10mm Dia
Voltage - Forward (Vf) (Typ) 3.3V
Current - Test 20mA
Viewing Angle 30°
Mounting SMD (SMT)
Wavelength - Dominant 470nm
Wavelength - Peak 468nm
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 3.20mm L x 1.60mm W
Height (Max) 1.40mm
Base Product Number SM1206
Standard Package 3,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242267-SM1206BWC-IL
Ultra Librarian 3D Model Ultra Librarian SM1206BWC-IL CAD Model

Description

The SM1206BWC-IL is a blue LED indication device that has a viewing angle of 30° and a millicandela rating of 225mcd.

  • Viewing Angle: 30°
  • Millicandela Rating: 225mcd
  • Wavelength Dominant: 470nm
  • Peak Wavelength: 468nm
  • Lens Style: Round with a flat top
  • Lens Size: 1.10mm diameter
  • Package: Tape and reel
  • Standard Package: 3000
  • HTSUS code: 8541.41.0000
