Same model may have multiple batches, images only for reference.

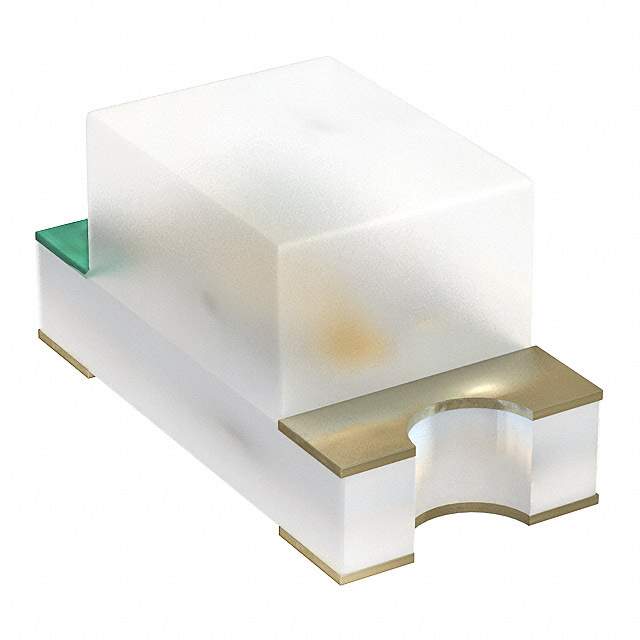

SM0603PGC Real Image
Same model may have multiple batches, images only for reference.

SM0603PGC

Part No SM0603PGC
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED GREEN CLEAR 0603 SMD / Green 557nm LED Indication - Discrete 2V 0603 (1608 Metric)
Datasheet
SM0603PGC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel (TR)
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 4.5mcd
Lens Style Rectangle with Flat Top
Lens Size 1.00mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 130°
Mounting SMD (SMT)
Wavelength - Dominant 557nm
Wavelength - Peak 555nm
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 1.60mm L x 0.80mm W
Height (Max) 0.80mm
Base Product Number SM0603
Standard Package 4,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242258-SM0603PGC
Ultra Librarian 3D Model Ultra Librarian SM0603PGC CAD Model

Description

The SM0603PGC by Bivar Inc. is an optoelectronic component that is a green LED indication with a viewing angle of 130 degrees.

  • Standard Package: 4,000
  • Mounting: SMD (SMT)
  • Win Source Part Number: 1242258-SM0603PGC
  • Dimension: 1.60mm L x 0.80mm W
  • Lens Style: Rectangle with flat top
