Same model may have multiple batches, images only for reference.

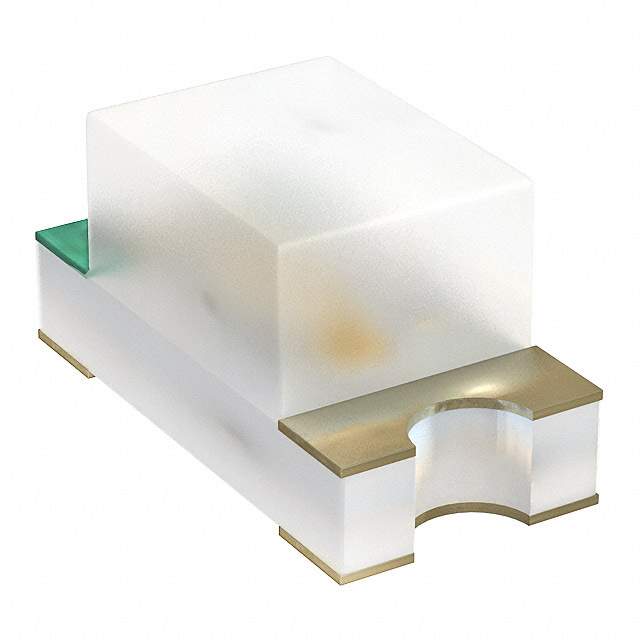

SM0603BWC Real Image
Same model may have multiple batches, images only for reference.

SM0603BWC

Part No SM0603BWC
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED BLUE CLEAR 0603 SMD / Blue 446nm LED Indication - Discrete 3.9V 0603 (1608 Metric)
Datasheet
SM0603BWC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel (TR)
Product Status Obsolete
Color Blue
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 5.1mcd
Lens Style Rectangle with Flat Top
Lens Size 1.00mm x 0.80mm
Voltage - Forward (Vf) (Typ) 3.9V
Current - Test 20mA
Viewing Angle 110°
Mounting SMD (SMT)
Wavelength - Dominant 446nm
Wavelength - Peak 428nm
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 1.60mm L x 0.80mm W
Height (Max) 0.80mm
Standard Package 4,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242242-SM0603BWC
Ultra Librarian 3D Model Ultra Librarian SM0603BWC CAD Model

Description

The Bivar Inc. SM0603BWC is a blue LED indication.

  • Shape: Rectangular-shaped
  • Lens Style: Flat top
  • Viewing Angle: 110 degrees
  • Lens Size: 1.00mm x 0.80mm
  • Millicandela Rating: 5.1mcd
  • Wavelength-Dominant: 446nm
  • Peak Wavelength: 428nm
  • Forward Voltage: 3.9V
  • Maximum Current: 20mA
  • Packaging: Tape and reel
  • Standard Package: 4000
  • Product Status: Obsolete
