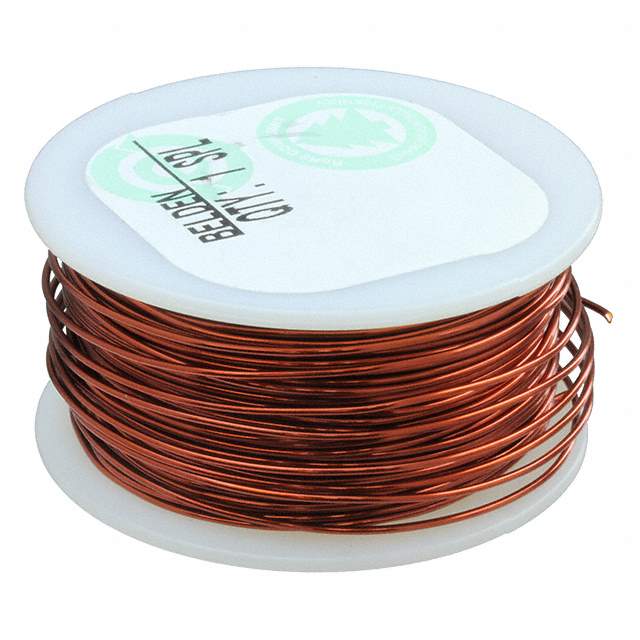

8077 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Magnetics - Transformer, Inductor Components - Magnetic Wire
Mfr Belden Inc.
Package Spool
Product Status Active
Wire Gauge 22 AWG
Conductor Material Copper, Annealed Bare
Jacket (Insulation) Material Polyamide
Jacket (Insulation) Diameter 0.028" (0.71mm)
Length - Approximate 501.0' (153m)
Ratings MW 35-C HY
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Win Source Part Number 858324-8077
Ultra Librarian 3D Model Ultra Librarian 8077 CAD Model

Description

The magnetic wire with the Win Source Part Number 858324-8077 is a transformer and inductor component used in electronic devices.

  • Manufacturer: Belden Inc.
  • Package: Spool
  • Wire Gauge: 22 AWG
  • Standard Package: 1 piece
  • Rating: MW 35-C HY
  • Conductor Material: Copper, Annealed Bare
  • Jacket (Insulation) Material: Polyamide
  • Diameter: 0.028" (0.71mm)
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8544.49.3080
  • Approximate Length: 501.0' (153m)
