Same model may have multiple batches, images only for reference.

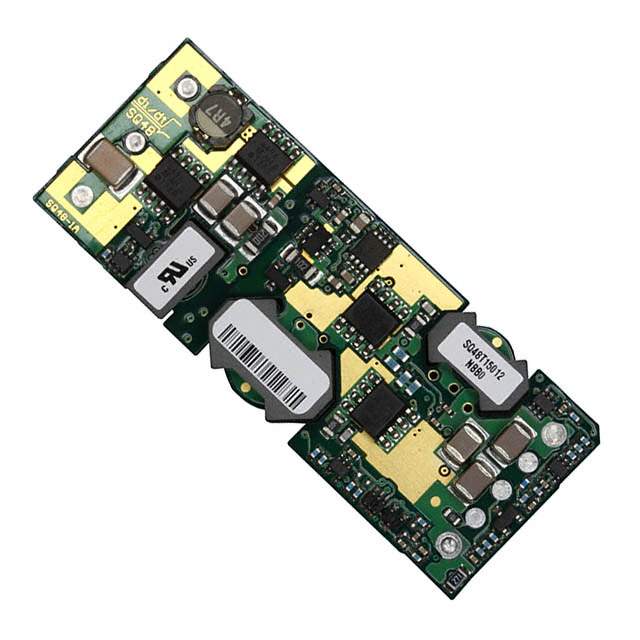

SQ48T15012-NBB0 Real Image
Same model may have multiple batches, images only for reference.

SQ48T15012-NBB0

Part No SQ48T15012-NBB0
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 1.2V 18W / Isolated Module DC DC Converter 1 Output 1.2V 15A 36V - 75V Input
Datasheet
SQ48T15012-NBB0 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Bel Power Solutions
Series SemiQ™ SQ48
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 1.2V
Current - Output (Max) 15A
Power (Watts) 18 W
Voltage - Isolation 2 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Dimension 2.30" L x 0.90" W x 0.26" H (58.4mm x 22.9mm x 6.6mm)
Control Features Enable, Active Low
Other Names 179-2217,SQ48T15012-NBBO,SQ48T15012-NAA0
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1237683-SQ48T15012-NBB0
Ultra Librarian 3D Model Ultra Librarian SQ48T15012-NBB0 CAD Model

Description

The SemiQ™ SQ48 is an isolated module power supply from Bel Power Solutions.

  • Features: Remote On/Off, OCP, OTP, OVP, UVLO, and control features such as Enable, Active Low
  • Application: ITE (Commercial)
  • Standard Package: 25
  • Power Output: 18 W
  • Maximum Output Current: 15A
  • Voltage Input Range: 36V to 75V
  • Voltage Output: 1.2V
  • Mounting: Through hole
  • Package/Case: 8-DIP Module, 1/8 Brick
  • Operating Temperature Range: -40°C to 85°C
  • Dimension: 2.30" L x 0.90" W x 0.26" H (58.4mm x 22.9mm x 6.6mm)
  • ECCN: EAR99
  • Status: Obsolete
