Same model may have multiple batches, images only for reference.

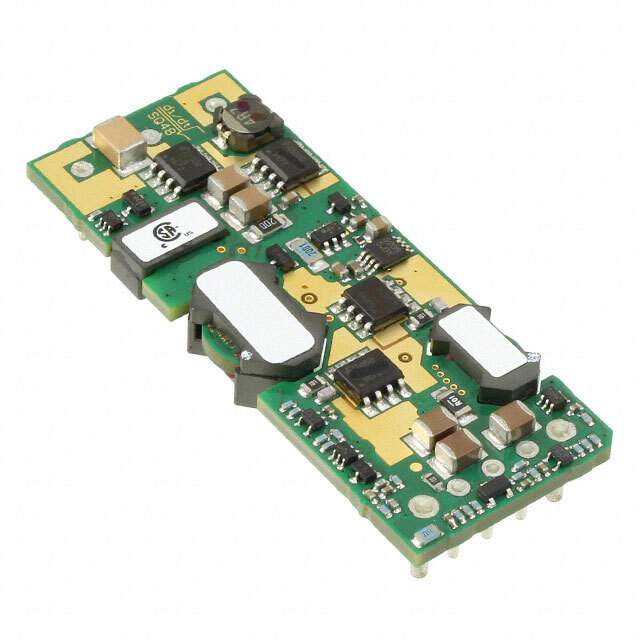

SQ48T04120-NBB0 Real Image
Same model may have multiple batches, images only for reference.

SQ48T04120-NBB0

Part No SQ48T04120-NBB0
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 48W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bel Power Solutions
Packaging Bulk
Part Status Obsolete (End Of Life)
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Maximum Input Voltage 75V
Voltage - Output 1 12V
Current - Output (Maximum) 4A
Power (Watts) 48W
Voltage - Isolation 2kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 87%
Mounting Style Through Hole
Manufacturer Package 8-DIP Module, 1/8 Brick
Dimension 2.30" L x 0.90" W x 0.26" H (58.4mm x 22.9mm x 6.6mm)
Control Features Enable, Active Low
Manufacturer Pack Quantity 33
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808109-SQ48T04120-NBB0
Ultra Librarian 3D Model Ultra Librarian SQ48T04120-NBB0 CAD Model

Description

The Bel Power Solutions SQ48T04120-NBB0 series of isolated modules are designed for use in power supplies.

  • Package: Bulk
  • Applications: ITE (Commercial)
  • Features: Remote On/Off, OCP, OTP, OVP, UVLO
  • Power: 48W
  • Output Current: 4A
  • Output Voltage: 12V
  • Efficiency: 87%
  • Operating Temperature: -40°C ~ 85°C
  • Dimensions: 2.30" L x 0.90" W x 0.26" H (58.4mm x 22.9mm x 6.6mm)
