Same model may have multiple batches, images only for reference.

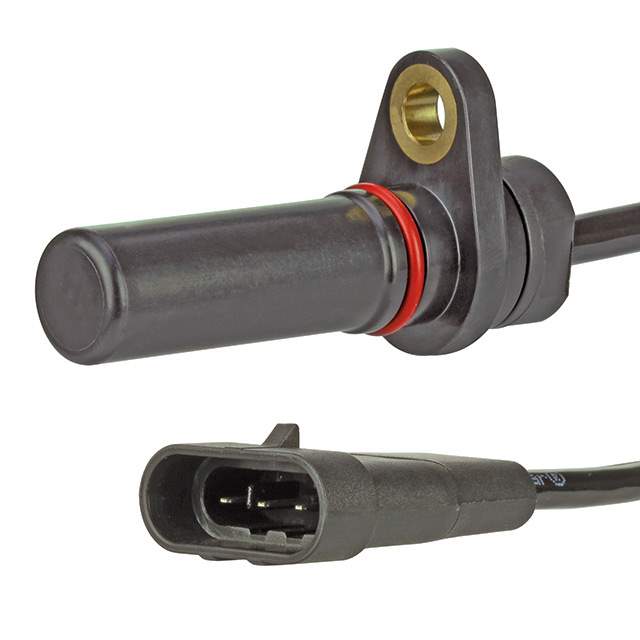

SNG-QPDB-000 Real Image
Same model may have multiple batches, images only for reference.

SNG-QPDB-000

Part No SNG-QPDB-000
Manufacturer Honeywell
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description QUADRATURE SPEED SENSOR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Position, Proximity, Speed (Modules) - Industrial
Mfr Honeywell Sensing and Productivity Solutions
Series SNG-Q
Package Box
Product Status Obsolete
Type Hall Effect Sensor
Output Type Digital
Actuator Material Ferrous Metals, Gear Tooth
Termination Style Cable with Connector
Frequency 20 kHz
Voltage - Supply 4.5V ~ 26V
Temperature Range - Operating -40°C ~ 150°C
Package / Case Module
Other Names 480-7037
Standard Package 5
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9015.80.8080
Win Source Part Number 1235364-SNG-QPDB-000
Ultra Librarian 3D Model Ultra Librarian SNG-QPDB-000 CAD Model

Description

The Honeywell SNG-QPDB-000 is an obsolete hall effect sensor that is widely used in industrial magnetic sensors, transducers, position, proximity, and speed modules.

  • Frequency: 20 kHz
  • Output Type: Digital
  • Package: Box
  • Termination Style: Cable connector
  • Actuator Material: Ferrous metals, gear tooth
  • Standard Package: 5
  • Voltage Supply: 4.5V to 26V
  • Operating Temperature: -40°C to 150°C
