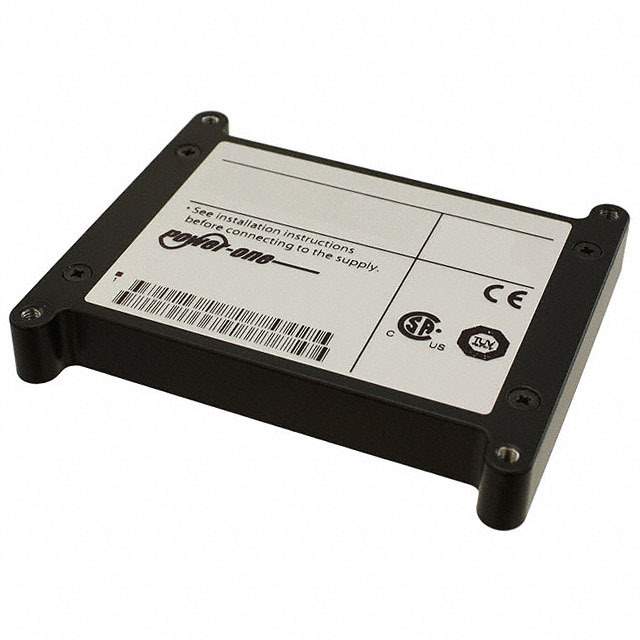

70IMX35D05D15-8 Real Image
Same model may have multiple batches, images only for reference.

70IMX35D05D15-8

Part No 70IMX35D05D15-8
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 15V 15V 35W / Isolated Module, Conformal Coated DC DC Converter 4 Output 5V 15V 15V 1.4A, 600mA, 600mA 40V - 121V Input
Datasheet
70IMX35D05D15-8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Bel Power Solutions
Series Melcher IMX35 (35W)
Package Bulk
Type Isolated Module, Conformal Coated
Number of Outputs 4
Voltage - Input (Min) 40V
Voltage - Input (Max) 121V
Voltage - Output 1 5V
Voltage - Output 2 15V
Voltage - Output 3 15V
Current - Output (Max) 1.4A, 600mA, 600mA
Power (Watts) 35 W
Voltage - Isolation 2.5 kV
Applications ITE (Commercial)
Features OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 88%
Mounting Type Through Hole
Package / Case 19-DIP Module
Size / Dimension 3.00" L x 2.50" W x 0.41" H (76.2mm x 63.5mm x 10.5mm)
Base Product Number 70IMX35
Standard Package 48
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1340848-70IMX35D05D15-8
Ultra Librarian 3D Model Ultra Librarian 70IMX35D05D15-8 CAD Model

Description

The Melcher IMX35 (35W) series from Bel Power Solutions is a power supply board mount DC-DC converter with four outputs.

  • Manufacturer: Bel Power Solutions
  • Series: Melcher IMX35 (35W)
  • Type: Power Supply Board Mount DC-DC Converter
  • Number of Outputs: 4
  • Module Type: Isolated
  • Coating: Conformal Coated
  • Protection Features: OCP, OTP, OVP, SCP, UVLO
  • Packaging: Bulk
  • Size: 3.00" L x 2.50" W x 0.41" H (76.2mm x 63.5mm x 10.5mm)
  • Application: ITE (Commercial)
  • Standard Package: 48
  • Power: 35 W
  • Voltage Isolation: 2.5 kV
  • Voltage Input (Min): 40V
  • Voltage Input (Max): 121V
  • Voltage Output 1: 5V
  • Voltage Output 2: 15V
  • Voltage Output 3: 15V
  • Efficiency: 88%
  • Mounting Type: Through Hole
  • Package/Case: 19-DIP Module
  • Operating Temperature: -40°C ~ 85°C
  • MSL Level: 1 (Unlimited)
  • REACH: REACH unaffected
  • HTSUS: 8504.40.9580
  • Base Product Number: 70IMX35
  • RoHS: RoHS Non-Compliant
