20IMX7-05-8G Bel Power Solutions – Price, Stock & Datasheet

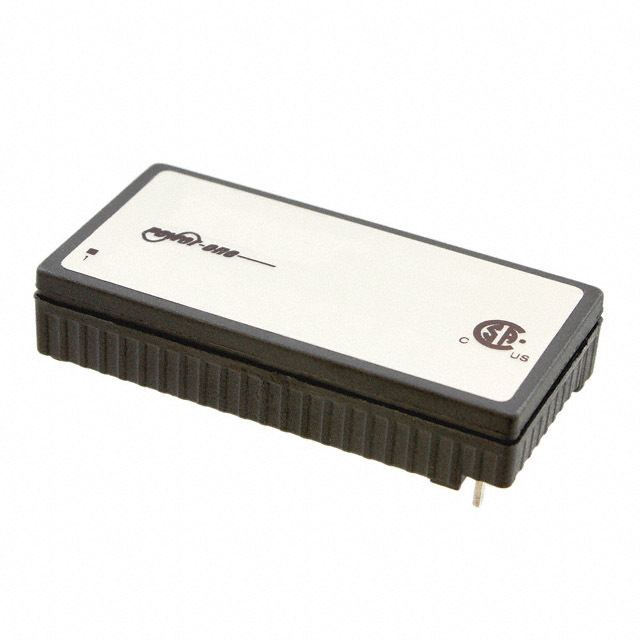

Same model may have multiple batches, images only for reference.

20IMX7-05-8G

Part No 20IMX7-05-8G
Manufacturer Bel Power Solutions
Catalog Board Mount AC DC Converters
Description DC DC CONVERTER 5.1V 7W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board MountDC DC Converters
Mfr Bel Power Solutions
Series Melcher IMX7 (7W)
Packaging Bulk
Part Status Active
Type Isolated Module, Conformal Coated
Number of Outputs 1
Voltage - Input (Min) 8.4V
Voltage - Input (Max) 36V
Voltage - Output 1 5.1V
Current - Output (Max) 1.2A
Power (Watts) 7 W
Voltage - Isolation 1.2 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature -40°C ~ 85°C
Efficiency 78%
Mounting Type Through Hole
Package / Case 14-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.4mm)
Base Product Number 20IMX7
Ultra Librarian 3D Model Ultra Librarian 20IMX7-05-8G CAD Model
