Same model may have multiple batches, images only for reference.

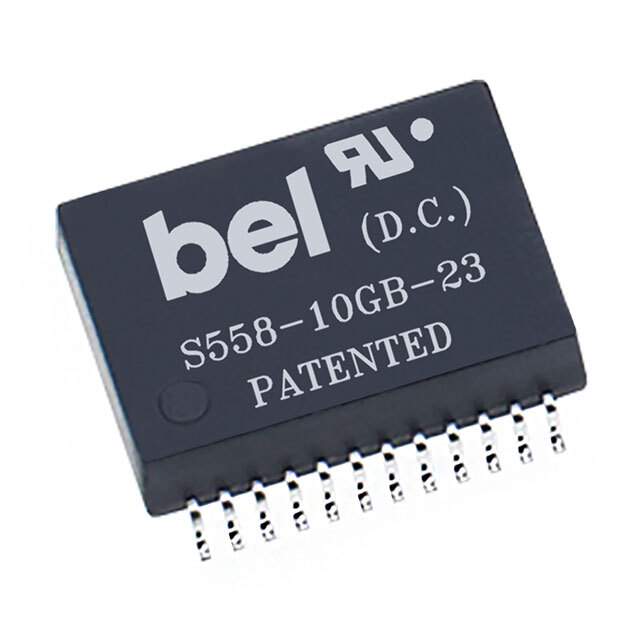

S558-10GB-23 Real Image
Same model may have multiple batches, images only for reference.

S558-10GB-23

Part No S558-10GB-23
Manufacturer Bel Fuse Inc.
Catalog Pulse Transformers
Description MODULE XFRMR LAN 10G POE SMD / 120µH LAN 10G Base-T, Power over Ethernet (PoE) Pulse Transformer 1CT:1CT Surface Mount
Datasheet
S558-10GB-23 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bel Fuse Inc.
Package Tape & Reel
Transformer Type LAN 10G Base-T, Power over Ethernet (PoE)
Inductance 120µH
Mounting SMD (SMT)
Dimension 0.610" L x 0.480" W (15.49mm x 12.19mm)
Height - Seated (Max) 0.290" (7.37mm)
Temperature Range - Operating -40°C ~ 85°C
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names 507-S558-10GB-23TR,507-S558-10GB-23DKR,507-S558-10GB-23CT
Standard Package 300
Win Source Part Number 999373-S558-10GB-23
Ultra Librarian 3D Model Ultra Librarian S558-10GB-23 CAD Model

Description

The 999373-S558-10GB-23, manufactured by Bel Fuse Inc., is a LAN 10G Base-T, Power over Ethernet (PoE) transformer type pulse transformer.

  • Inductance: 120μH
  • Height: 0.290" (7.37mm) when seated
  • Packaging: tape and reel
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.610" L x 0.480" W (15.49mm x 12.19mm)
  • ECCN: EAR99
  • REACH: unaffected
