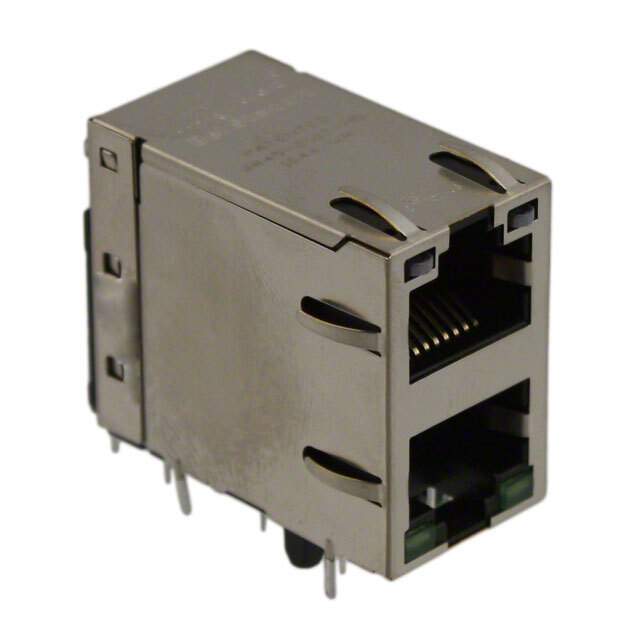

Same model may have multiple batches, images only for reference.

0845-2G1T-H5

Name: 0845-2G1T-H5
Brand: Bel Fuse Inc.
SKU: 1350525
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0845-2G1T-H5
Manufacturer	Bel Fuse Inc.
Catalog	Modular Connectors
Description	CONN JACK 2PORT 100 BASE-T PCB / 2 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
Datasheet	0845-2G1T-H5 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr	Bel Fuse Inc.
Series	MagJack®
Package	Tray
Connector Type	RJ45
Number of Ports	2
Number of Rows	2
Applications	10/100 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	1.080" (27.43mm)
LED Color	Green - Green
Number of Cores per Jack	4
Shielding	Shielded, EMI Finger
Features	Board Guide
Tab Direction	Up and Down
Contact Finish	Gold
Contact Finish Thickness	50.0µin (1.27µm)
Shield Material	Copper Alloy
Housing Material	Polybutylene Terephthalate (PBT)
Base Product Number	0845-2G1T
Standard Package	40
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350525-0845-2G1T-H5
Ultra Librarian 3D Model	Ultra Librarian 0845-2G1T-H5 CAD Model

Alternative Products

Description

The Bel Fuse Inc. modular connector jack with magnetics is a 90° angle (right) RJ45 connector type with two ports.

Connector Type: 90° Angle (Right) RJ45
Number of Ports: 2
Features: Shielded, EMI Finger and Board Guide
Height Above Board: 1.080" (27.43mm)
Contact Finish: Gold
Contact Finish Thickness: 50.0μin (1.27μm)
Number of Cores per Jack: 4
Tab Direction: Up and Down
Shielding Material: Copper Alloy
Housing Material: Polybutylene Terephthalate (PBT)
Applications: 10/100 Base-T and AutoMDIX
Mounting Type: Through Hole
Package: Tray
Approval: Bel Fuse Inc.
