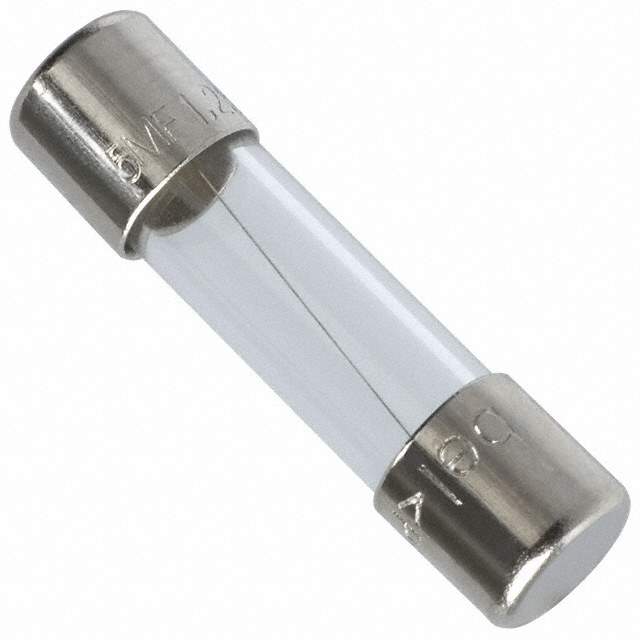

5MF 1-R Real Image
Same model may have multiple batches, images only for reference.

5MF 1-R

Part No 5MF 1-R
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE GLASS 1A 250VAC 5X20MM / 1 A 250 V AC DC Fuse Cartridge, Glass Holder 5mm x 20mm
Datasheet
5MF 1-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bel Fuse Inc.
Series 5MF
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 1 A
Voltage Rating - AC 250 V
Response Time Fast Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 200A
Melting I2t 0.88
Approval Agency CE, CSA, cULus, PSE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.201" Dia x 0.787" L (5.10mm x 20.00mm)
DC Cold Resistance 0.118 Ohms
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Other Names 5MF1R,5MF1A-R,0651R1000-31,5MF1-R,507-1261,5MF1AR
Standard Package 1,000
Win Source Part Number 1015995-5MF 1-R
Ultra Librarian 3D Model Ultra Librarian 5MF 1-R CAD Model

Description

The Bel Fuse Glass Cartridge Fuse is a high-quality electronic component that is designed for use in various electronic circuits.

  • Current Rating: 1 A
  • Voltage Rating: 250 V
  • Response Time: Fast-blow
  • Breaking Capacity: 200A @ rated voltage
  • Case Size: 5mm x 20mm
  • Temperature Range: -55°C to 125°C
