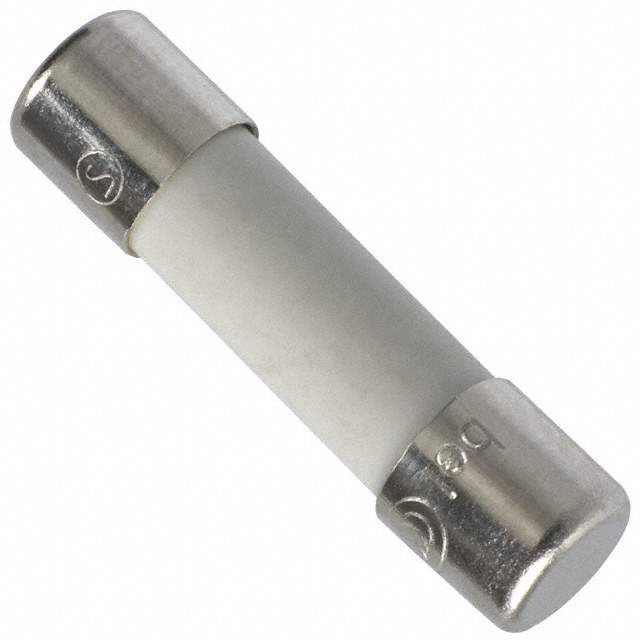

5HT 250-R Real Image
Same model may have multiple batches, images only for reference.

5HT 250-R

Part No 5HT 250-R
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE CERAMIC 250MA 250VAC 5X20MM / 250 mA 250 V AC DC Fuse Cartridge, Ceramic Holder 5mm x 20mm
Datasheet
5HT 250-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bel Fuse Inc.
Series 5HT
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 250 mA
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 0.1
Approval Agency CCC, CE, CSA, cULus
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.201" Dia x 0.787" L (5.10mm x 20.00mm)
DC Cold Resistance 3.41 Ohms
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 5HT250-R-ND,0659R0250-12,5HT 250-R-ND,5HT250-R,507-2270
Standard Package 1,000
Win Source Part Number 994763-5HT 250-R
Ultra Librarian 3D Model Ultra Librarian 5HT 250-R CAD Model

Description

The 5HT250-R-ND is a slow-blow ceramic cartridge fuse manufactured by Bel Fuse Inc.

  • Current Rating: 250mA
  • Voltage Rating: 250V AC
  • Breaking Capacity: 1.5kA
  • DC Cold Resistance: 3.41 Ohms
  • Package: 1,000 units in bulk
  • Mounting: on a holder
  • Package/Case Size: 5mm x 20mm
  • Operating Temperature Range: -55°C ~ 125°C
