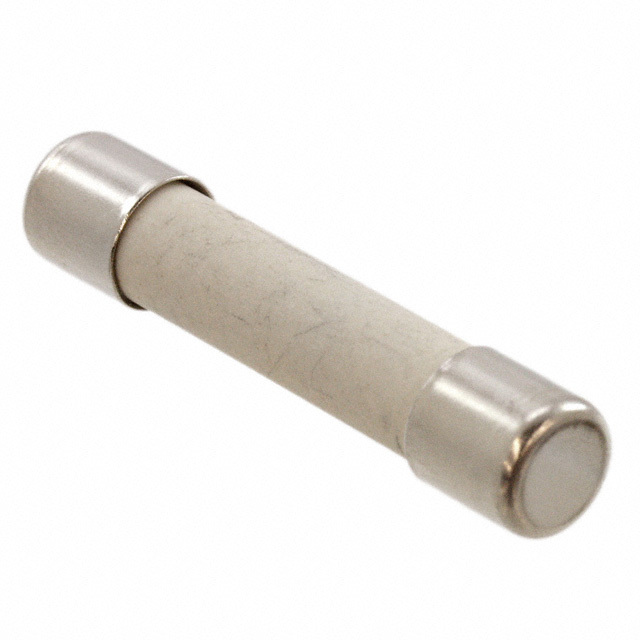

3AB 20-R Bel Fuse Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

3AB 20-R

Part No 3AB 20-R
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE CERAMIC 20A 250VAC 3AB 3AG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Mounting Type Requires Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 20 A
Voltage Rating - AC 250 V
Response Time Fast Blow
Case / Package 3AB, 3AG, 1/4" x 1-1/4"
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 1598.0
Approval Agency CE, cURus
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.250\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1603382-3AB 20-R
Ultra Librarian 3D Model Ultra Librarian 3AB 20-R CAD Model
